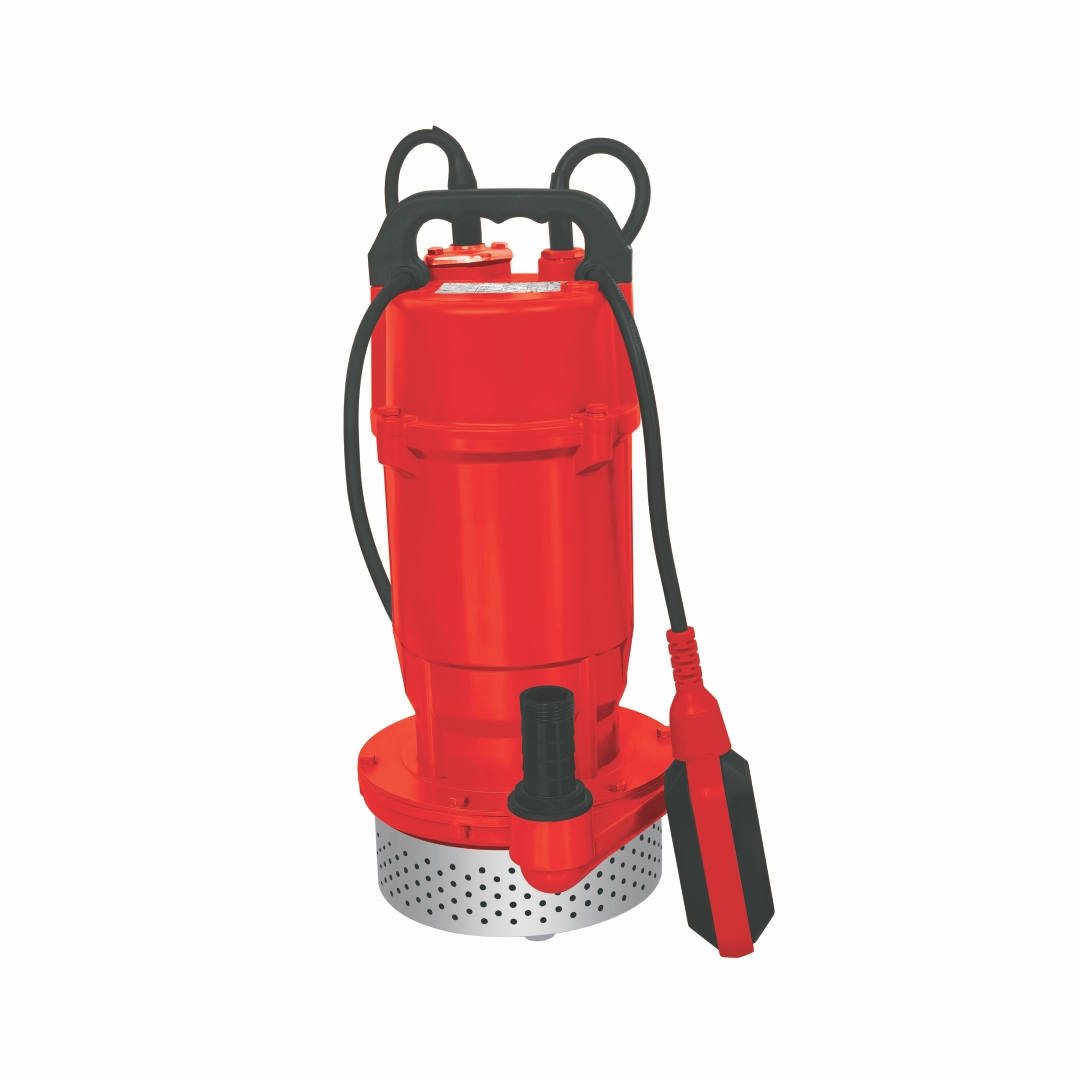

SUBMERSIBLE WATER PUMP WITH FLOAT SWITCH 750W MODEL 1281
Loading...
SUBMERSIBLE WATER PUMP WITH FLOAT SWITCH 750W MODEL 1281
Product Code: 1281
Power : 750 watt
Input Voltage : 220-240
Frequency : 50-60 Hz
No-Load Speed: 2850 RPM
Share this on:
Product Accessories
Product Catalogs
Product Description
Product Specifications
Additional information
| Rated Power | 750 W |
|---|---|
| Rated Horsepower | 1 HP |
| Input Voltage (Min) | 220 V |
| Input Voltage (Max) | 240 V |
| Frequency (Min) | 50 Hz |
| Frequency (Max) | 60 Hz |
| Minimum Working Pressure | 1.5 Bar |
| Maximum Working Pressure | 2.5 Bar |
| No-Load Speed | 2850 RPM |
| Maximum Ambient Temperature | 40 °C |
| Minimum Flow Rate | 25 L/min |
| Maximum Flow Rate | 130 L/min |
| Maximum Fluid Temperature | 35 °C |
| Minimum Pumping Head | 8 m |
| Maximum Pumping Head | 33 m |
| Inlet Diameter | 1 inch |
| Outlet Diameter | 1 inch |
| Maximum Solid Particle Diameter | 3 mm |
| Maximum Submersion Depth | 5 m |
| Noise Level | 70 dB(A) |
| Number of Capacitors | 1 pc |
| Number of Impellers | 1 pc |
| Cable Length | 8 m |
| Cable Type | H05RN-F 3G0.75mm² |
Product Videos
Product technical features
- Suitable for lifting and draining water from tanks, wells, and reservoirs
- Circulates water in pools or tanks to maintain water movement and prevent stagnation
- Ideal for heavy-duty dewatering and pumping operations in construction or industrial projects
- Used for domestic water supply systems, particularly in homes with underground storage tanks or wells
- Equipped with an aluminum impeller for durability and efficiency
- Motor winding with thermal class B insulation for extended lifespan
- Fully submersible design for continuous underwater operation
- Designed for clean and clear water applications (free of solid particles)
- Fitted with a mechanical seal for improved sealing performance and reliability
- Centrifugal submersible pump suitable for various water lifting applications including drainage, water supply, and irrigation
- Submersible design allows easy installation in limited spaces such as wells, tanks, or basements
- Highly efficient cooling – motor is cooled directly by the pumped water, ensuring better performance than surface pumps
- No priming required – operates immediately without manual priming, unlike traditional surface pumps
- Perfect for agricultural irrigation and water transfer
- Flood control and drainage – efficiently removes accumulated water from flooded areas, basements, or construction sites
- User-friendly design ensuring reliable operation across various environments
- Optimized motor size and power for ideal flow rate and head performance
- 100% copper motor winding for superior efficiency and long service life
- High-quality impeller for enhanced durability and operational stability
- Stainless steel shaft for corrosion resistance and extended operational life
- High-quality bearings and seals ensuring smooth operation
- Motor size: 120×85 mm
- Thermal class: Class B
- Bearing brand: C&U (High-quality Chinese industrial bearing)
- Mechanical seal: Italian NBR type with ceramic/graphite faces
- Painting type: Electrostatic painting (dual layer: electrophoresis + spray coating)
- Motor Efficiency Index (MEI): ≥ 0.4
- Motor protection rating: IP68 (complete protection against water and dust ingress)
- Automatic thermal protector – motor shuts down under dry-run or overheating conditions
- Motor housing material: Aluminum
- Fasteners (screws): Stainless Steel (S/S)
- Oil type: Transformer oil for lubrication and cooling
- O-ring material: Viton (high chemical and heat resistance)
- Mounting position: Vertical installation
- Capacitor: 20 µF
- Float switch information: Micro switch 220V / 750W, 8A
- Base material: Iron support frame
- Top cover and cable gland material: Plastic
- Carrying handle: Plastic ergonomic handle
- Water pH compatibility: 7 (neutral water)
