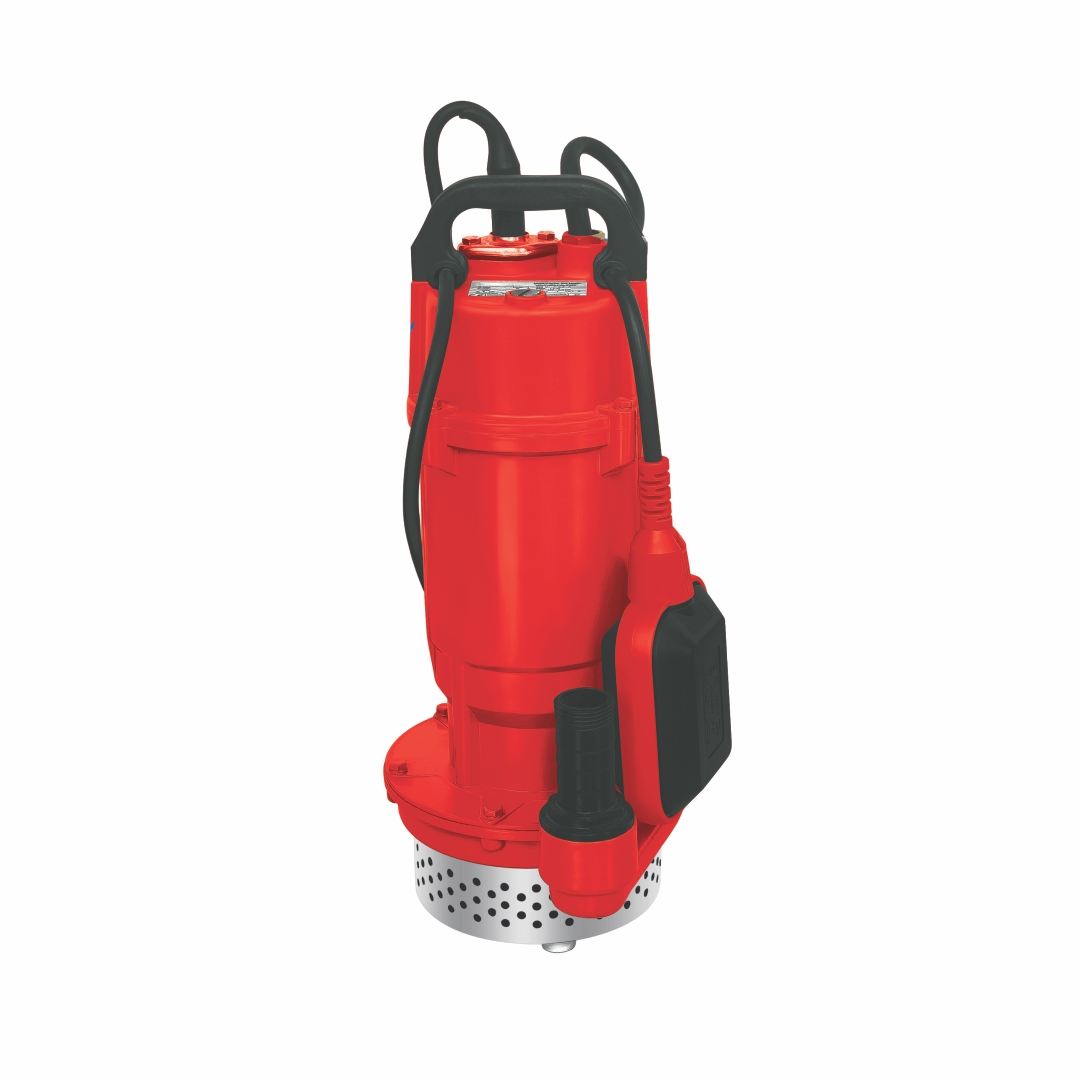

SUBMERSIBLE WATER PUMP WITH FLOAT SWITCH 370W MODEL 1280

Product Code: 1280

Power : 370 watt

Input Voltage : 220-240

Frequency : 50-60 Hz

No-Load Speed: 2850 RPM

Categories: Power Tools, Pumps & Water Supply, Submersible Water Pump

Share this on:

Additional information

Rated Power	370 W
Rated Horsepower	0.5 HP
Input Voltage (Min)	220 V
Input Voltage (Max)	240 V
Frequency (Min)	50 Hz
Frequency (Max)	60 Hz
Minimum Working Pressure	1.5 Bar
Maximum Working Pressure	2.5 Bar
No-Load Speed	2850 RPM
Maximum Ambient Temperature	40 °C
Minimum Flow Rate	20 L/min
Maximum Flow Rate	100 L/min
Maximum Fluid Temperature	35 °C
Minimum Pumping Head	8 m
Maximum Pumping Head	20 m
Inlet Diameter	1 inch
Outlet Diameter	1 inch
Maximum Solid Particle Diameter	3 mm
Maximum Submersion Depth	5 m
Noise Level	70 dB(A)
Number of Capacitors	1 pc
Number of Impellers	1 pc
Cable Length	8 m
Cable Type	H05RN-F 3G0.75mm²

Suitable for lifting and draining water from tanks, wells, and reservoirs
Circulates water in pools or tanks to maintain water movement and prevent stagnation
Ideal for heavy-duty dewatering and pumping operations in construction or industrial projects
Used for domestic water supply systems, particularly in homes with underground storage tanks or wells
Equipped with an aluminum impeller for durability and efficiency
Motor winding with thermal class B insulation for extended lifespan
Fully submersible design for continuous underwater operation
Designed for clean and clear water applications (free of solid particles)
Fitted with a mechanical seal for improved sealing performance and reliability
Centrifugal submersible pump suitable for various water lifting applications including drainage, water supply, and irrigation
Submersible design allows easy installation in limited spaces such as wells, tanks, or basements
Highly efficient cooling – motor is cooled directly by the pumped water, ensuring better performance than surface pumps
No priming required – operates immediately without manual priming, unlike traditional surface pumps
Perfect for agricultural irrigation and water transfer
Flood control and drainage – efficiently removes accumulated water from flooded areas, basements, or construction sites
User-friendly design ensuring reliable operation across various environments
Optimized motor size and power for ideal flow rate and head performance
100% copper motor winding for superior efficiency and long service life
High-quality impeller for enhanced durability and operational stability
Stainless steel shaft for corrosion resistance and extended operational life
High-quality bearings and seals ensuring smooth operation
Motor size: 120×85 mm
Thermal class: Class B
Bearing brand: C&U (High-quality Chinese industrial bearing)
Mechanical seal: Italian NBR type with ceramic/graphite faces
Painting type: Electrostatic painting (dual layer: electrophoresis + spray coating)
Motor Efficiency Index (MEI): ≥ 0.4
Motor protection rating: IP68 (complete protection against water and dust ingress)
Automatic thermal protector – motor shuts down under dry-run or overheating conditions
Motor housing material: Aluminum
Fasteners (screws): Stainless Steel (S/S)
Oil type: Transformer oil for lubrication and cooling
O-ring material: Viton (high chemical and heat resistance)
Mounting position: Vertical installation
Capacitor: 20 µF
Float switch information: Micro switch 220V / 750W, 8A
Base material: Iron support frame
Top cover and cable gland material: Plastic
Carrying handle: Plastic ergonomic handle
Water pH compatibility: 7 (neutral water)
