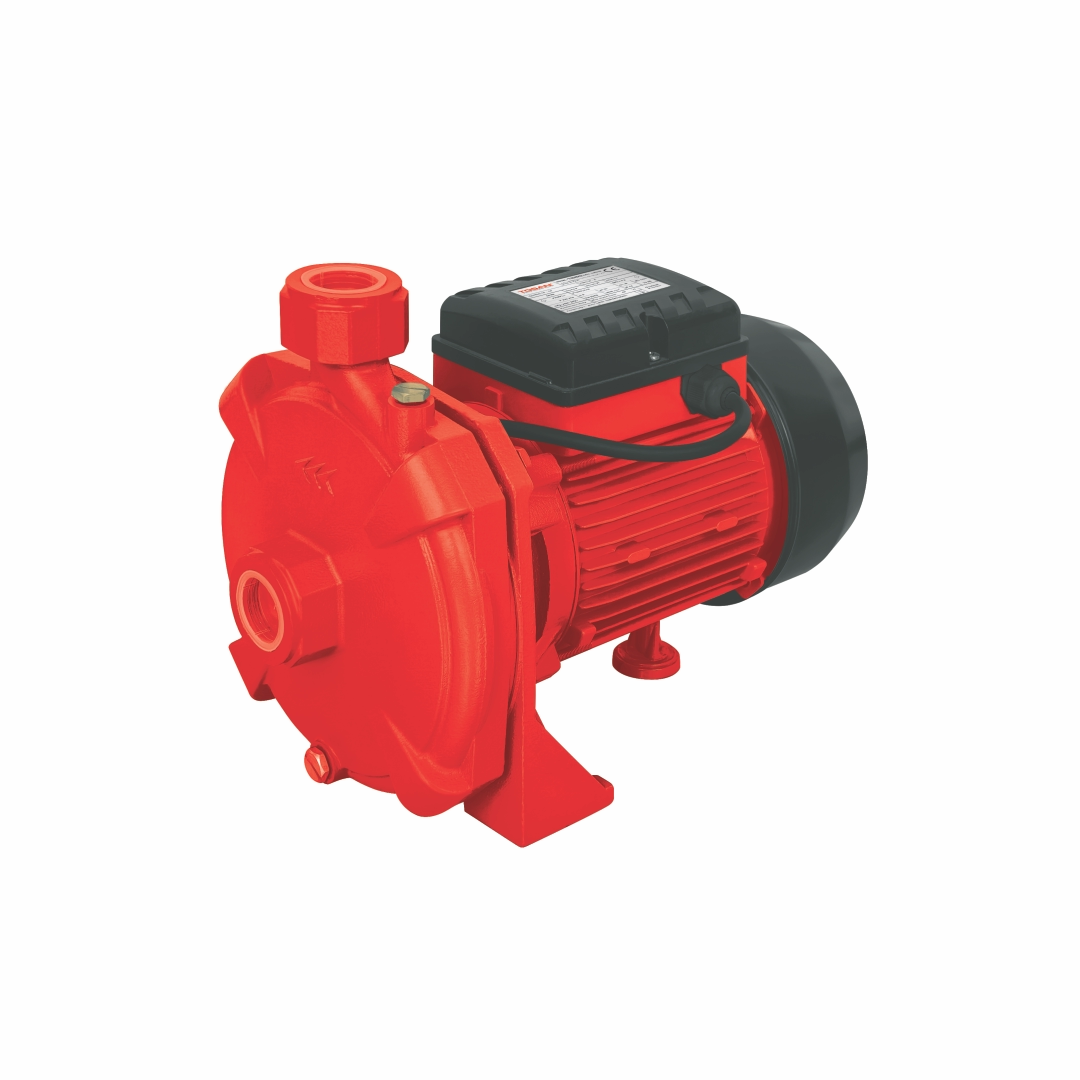

1HP CENTRIFUGAL WATER PUMP 750W MODEL 1260

Suitable for transferring clean water without solid particles or impurities

Designed for domestic and agricultural applications with low to medium pressure requirements

Equipped with a mechanical seal (NBR / Ceramic / Graphite) for enhanced sealing efficiency and leak prevention

Self-priming capability up to 8 meters suction depth

Common applications include:
– Domestic water supply systems
– Pressure boosting or water distribution in residential and commercial buildings
– Rainwater harvesting systems
– Garden, lawn, and small farm irrigation
– Water transfer and filtration systems

Neutral water compatibility (pH value = 7)

Low wear rate and easy maintenance

Built-in thermal overload protector for motor safety

Dustproof housing for long-term durability

Supplied with 30 cm cable (H05VV-F 3G0.75mm²) without plug

Belongs to the CPM centrifugal series, commonly used for water supply, irrigation, and general-purpose pumping, offering higher efficiency than peripheral models

Compact and reliable design (Model: ACm75)

Motor size: 110×80 mm

100% copper winding for improved efficiency and longevity

Motor insulation class: Class B (operational temperature up to 130°C)

Bearings: C&U brand (premium Chinese manufacturer)

Mechanical seal: Italian type NBR – Ceramic/Graphite faces

Impeller material: Stainless steel (SUS)

Painting: Electrostatic coating (dual-layer electrophoresis + spray finish)

Screws: Stainless Steel (S/S)

Protection rating: IP44 (splash- and dust-resistant motor housing)

Pump housing material: Cast iron

Motor casing: Aluminum alloy

Stator plates: Q195 steel

Rotor core: Q195 steel

Mechanical seal material: Ceramic/Graphite composite

Motor bracket: Aluminum alloy

Shaft material: Stainless Steel (SUS)

O-ring material: Viton (oil and heat resistant)

Safety system: Built-in thermal protector

Capacitor: 20 µF

Motor Efficiency Index (MEI): ≥ 0.4

Coupling size: 1-inch hose connector

Installation type: Horizontal mounting only
