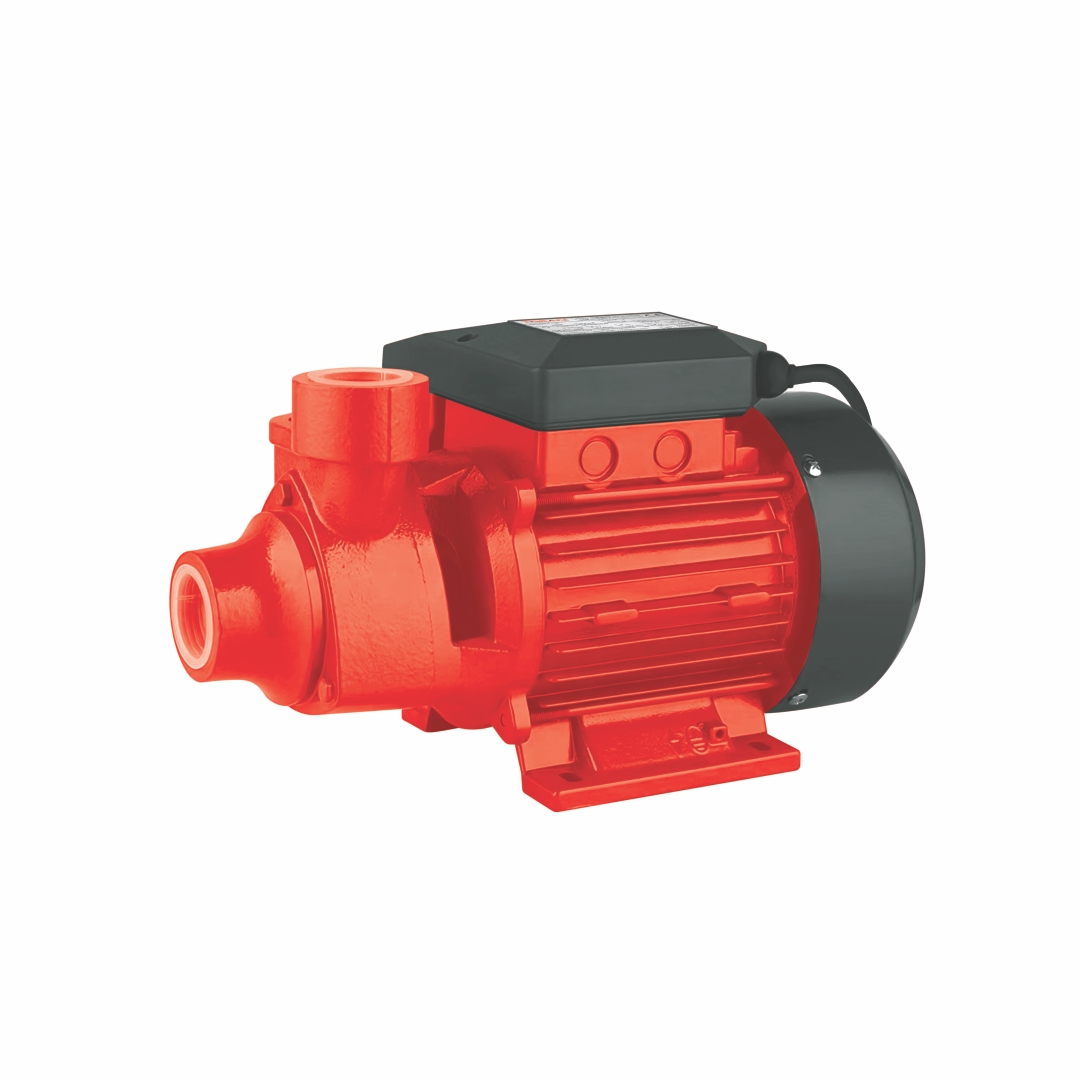

0.5HP PERIPHERAL WATER PUMP 370W MODEL 1250
0.5HP PERIPHERAL WATER PUMP 370W MODEL 1250
Power : 370 watt
Input Voltage : 220-240
Frequency : 50-60 Hz
No-Load Speed: 2850 RPM
Product Accessories
Product Catalogs
Product Description
Product Specifications
Additional information
| Rated Power | 370 W |
|---|---|
| Horsepower | 0.5 HP |
| Voltage (Min) | 220 V |
| Voltage (Max) | 240 V |
| Frequency (Min) | 50 Hz |
| Frequency (Max) | 60 Hz |
| Minimum Working Pressure | 1.5 Bar |
| Maximum Working Pressure | 2.5 Bar |
| No-Load Speed | 2850 RPM |
| Maximum Ambient Temperature | 40 °C |
| Maximum Liquid Temperature | 50 °C |
| Inlet Diameter | 1 inch |
| Outlet Diameter | 1 inch |
| Number of Capacitors | 1 pc |
| Number of Impellers | 1 pc |
| Suction Lift | 8 m |
| Capacitor Voltage Rating | 450 VAC |
| Minimum Flow Rate | 5 L/min |
| Maximum Flow Rate | 35 L/min |
Product Videos
Product technical features
-
Suitable for transferring clean water free from solid particles and chemical salts (non-corrosive liquids only).
-
Designed for villas, gardens, and small agricultural or domestic applications.
-
Self-priming capability allows suction up to 8 meters of water depth.
-
Common applications include:
– Domestic water supply and distribution
– Rainwater harvesting systems
– Garden and lawn irrigation
– Light agricultural irrigation and pressure boosting -
Compact design with optimized head and flow performance for confined spaces.
-
Neutral fluid compatibility: pH = 7
-
Equipped with an Italian mechanical seal (NBR / Ceramic / Graphite) for improved sealing efficiency and leakage prevention.
-
Built-in thermal protection sensor for enhanced motor safety.
-
Dustproof motor housing (IP44 protection).
-
Supplied with 30 cm cable (H05VV-F 3G0.75mm²) without plug.
-
Maximum permissible solid particle size: 3 mm.
-
Self-priming centrifugal design (Compact type) suitable for small residential or light commercial use.
-
Motor size: 90×50 mm.
-
100% copper motor winding ensures high efficiency and long service life.
-
Motor insulation class: Class B (operates safely up to 130°C ambient temperature).
-
Bearings: C&U brand (high-quality Chinese industrial bearings).
-
Mechanical seal: Italian NBR / Ceramic / Graphite for superior durability.
-
Impeller material: Brass (for maximum corrosion and wear resistance).
-
Painting type: Electrostatic coating, dual layer (Electrophoresis + Spray).
-
Shaft insert material: Stainless steel.
-
Pump housing: Cast iron (robust and vibration-resistant).
-
Motor housing: Aluminum alloy (for lightweight and heat dissipation).
-
Fasteners: Stainless steel (S/S).
-
Stator and rotor core material: Q195 steel.
-
Shaft material: Stainless steel.
-
Motor bracket: Aluminum.
-
O-ring material: Viton (resistant to oil, heat, and chemicals).
-
Built-in safety system: Thermal overload protector.
-
Capacitor: 10 µF ±5% (450 VAC).
-
Motor Efficiency Index (MEI): ≥ 0.4.
-
Inlet/Outlet coupling: 1-inch threaded hose connection.
-
Installation type: Horizontal mounting only.
