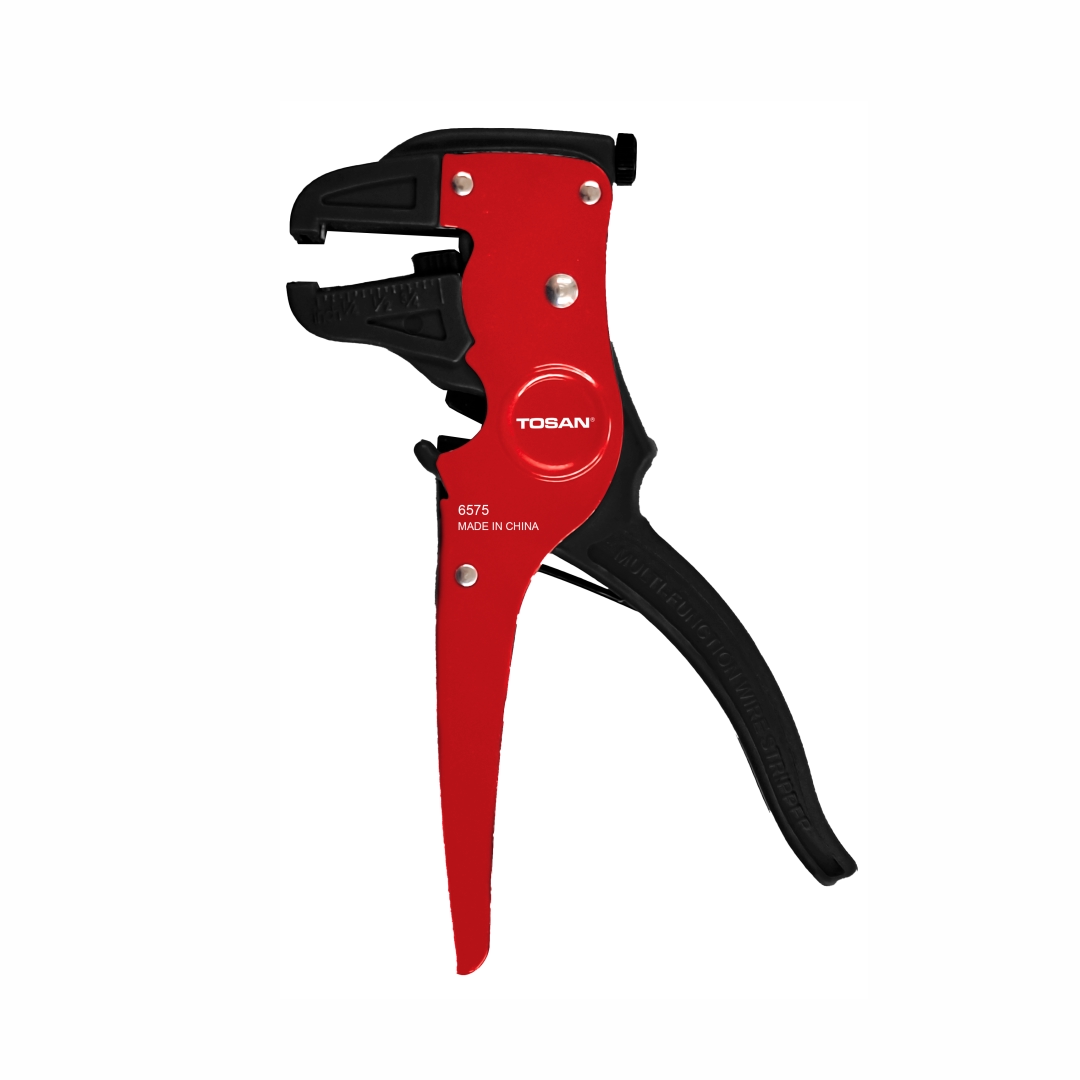

AUTOMATIC WIRE STRIPPER
AUTOMATIC WIRE STRIPPER
Size: 7 inch
Minimum Stripping Length: 2.5 mm
Maximum Stripping Length: 20 mm
Product Description
Product Specifications
Additional information
| Size | 7 inch |
|---|---|
| Minimum Stripping Length | 2.5 mm |
| Maximum Stripping Length | 20 mm |
| Minimum Wire Stripping Capacity | 0.25 mm² (24 AWG) |
| Maximum Wire Stripping Capacity | 4 mm² (12 AWG) |
| Minimum Cutting Capacity (Single Core Wire Diameter) | 0.08 mm |
| Maximum Cutting Capacity (Single Core Wire Diameter) | 2 mm |
| Minimum Cutting Capacity (Stranded Wire Diameter) | 0.09 mm |
| Maximum Cutting Capacity (Stranded Wire Diameter) | 3.5 mm |
| Overall Tool Length | 170 mm |
Technical Specifications
-
Equipped with an adjustable tension screw for fine-tuning the blade pressure according to wire size.
-
Suitable for stripping wires with a cross-sectional area of 0.25–4 mm² (24–12 AWG).
-
Graduated adjustable body allows precise insulation removal with dual measurement units (mm / inch).
-
Features an adjustable wire length stop for consistent stripping results.
-
High-quality cutting blade designed for single-core (solid) wires: Ø 0.08–2 mm and stranded wires: Ø 0.09–3.5 mm.
-
Body material: Carbon steel for strength and durability.
-
Handle material: Polyamide (PA6) for comfort and chemical resistance.
-
Equipped with hardened steel stripping and cutting blades for long life and precision.
-
Reinforced return spring ensures smooth operation and extended tool life.
-
Ergonomic handle design conforms to hand anatomy, providing comfort and reduced fatigue.
-
Body finish: Electroplated coating for corrosion protection.
-
Cutting blade material: 65Mn manganese steel for superior sharpness and wear resistance.
-
Stripping blade material: 65Mn manganese steel for durability and accuracy.
-
Spring material: #75 high-carbon steel for resilience.
-
Pin material: A3 structural steel for mechanical strength.
-
Adjustment screw material: A3 steel with precision threading.
-
Body surface treated with electroplating for enhanced corrosion resistance.
