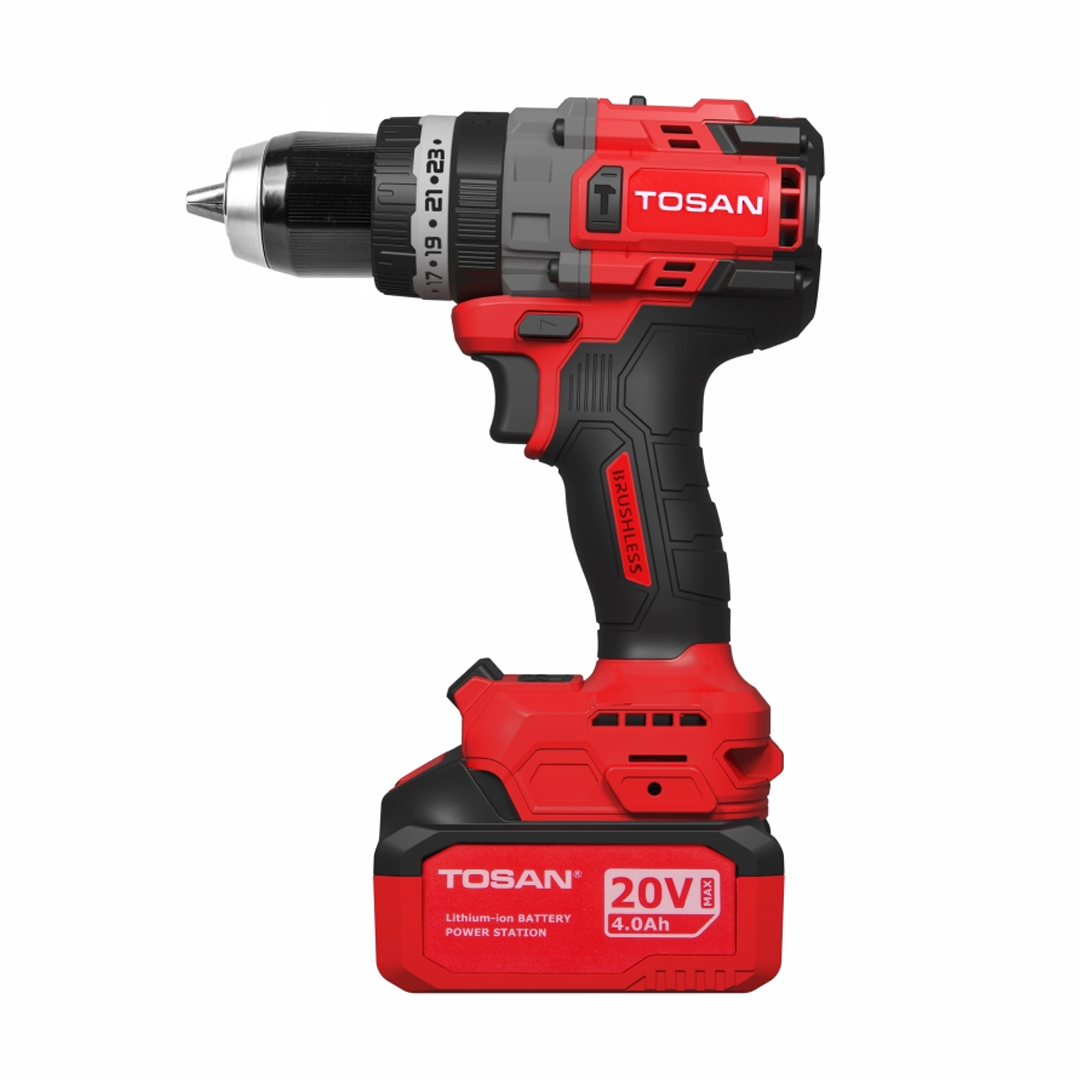

Cordless Brushless Hammer Drill/Driver 20V Model 9623
Cordless Brushless Hammer Drill/Driver 20V Model 9623
Voltage : 20V
No-Load Speed – Eco Mode : 550-2000 RPM
No-Load Speed – Turbo Mode : 700-2500 RPM
Impact Rate – Eco Mode: 8800-32000 BPM
Impact Rate – Turbo Mode: 11200-40000 BPM
Max Torque : 160 Nm
Product Accessories
2Batteries 4 Ah
Charger
Belt Hook and Strap
Auxiliary Handle
BAG IMC
Product Catalogs
Product Description
Product Specifications
Additional information
| Voltage | 20 Volts |
|---|---|
| No-Load Speed – Eco Mode | 550-2000 RPM |
| No-Load Speed – Turbo Mode | 700-2500 RPM |
| Impact Rate – Eco Mode | 8800-32000 BPM |
| Impact Rate – Turbo Mode | 11200-40000 BPM |
| Max Torque | 160 Nm |
| Chuck Diameter | 13 mm |
| Maximum Drilling Capacity in Wood | 60 mm |
| Maximum Drilling Capacity in Metal | 13 mm |
| Maximum Drilling Capacity in Concrete | 16 mm |
| Battery Capacity | 4 Ah |
| Full Charge Time | 60 min |
| Speed Settings | 2 |
| Weight per Battery | 0.67 kg |
Product Videos
Product technical features
Suitable for working on various surfaces such as wood, metal, plastic, and walls
• Equipped with anti–kickback speed control for quick-stop functionality to improve safety and control
• Equipped with a two-speed gearbox
• Equipped with Turbo mode
• Adjustable 24 torque settings for fastening and loosening various screws, and 2 modes for drilling and hammer drilling
• Equipped with an anti-vibration auxiliary handle
• Forward and reverse rotation capability (CW / CCW)
• Powerful drilling and fastening performance with fast torque up to 160 Nm
• Equipped with Pulse mode for removing damaged or stuck screws
• Equipped with an LED light that stays on for 20 minutes at 10°, 30°, 45°, and 60° angles
• Includes a 4A fast charger capable of charging the battery in one hour
• 13 mm metal keyless chuck with safety lock to prevent bit drop during operation
• Ergonomic body with anti-sweat handle
• Supplied with a durable carrying case
• Battery charge level indicator on the battery
• Includes wrist strap and belt hook
• Brushless motor for reduced energy loss, higher efficiency, lower wear, and longer motor life
• Powerful high-rate impacts for fast and effective drilling
• Equipped with a 4.0 Ah lithium-ion battery
• Charger type: 4A charging base
• Chuck material: Metal
