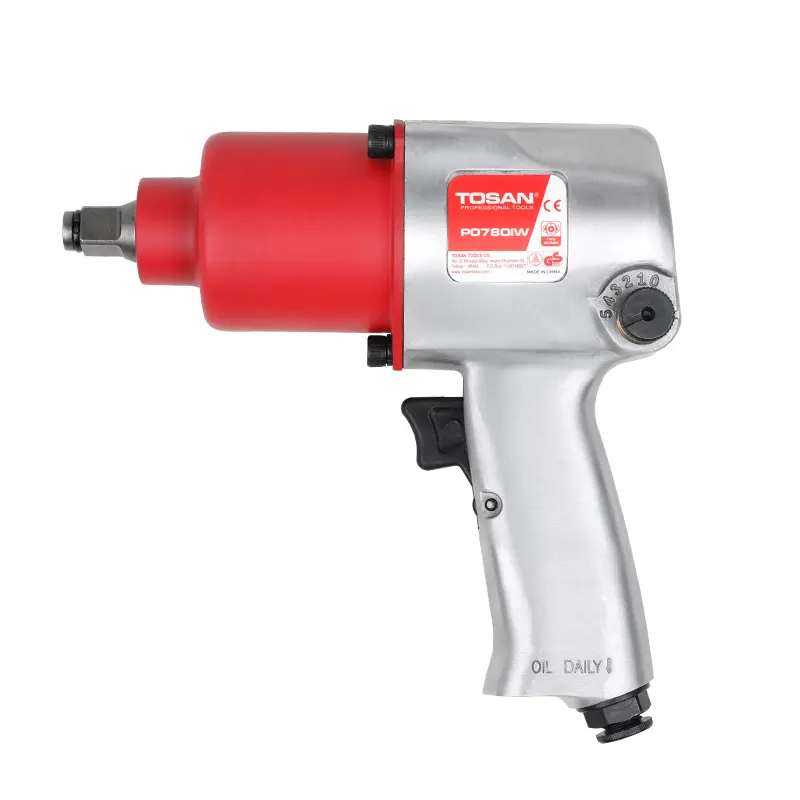

AIR IMPACT WRENCH 1/2 INCH MODEL P0780 IW
AIR IMPACT WRENCH 1/2 INCH MODEL P0780 IW
Max torque: 780Nm
Air flow range: 8 L/s
Max air pressure:90PSI- 6.3 bar
No-load speed: 8500 rpm
Product Accessories
coupling
Product Catalogs
Product Description
The Tosan P0780 IW ½-inch drive pneumatic impact wrench is equipped with a twin-hammer impact mechanism, delivering two strikes to the shaft with each full rotation of the rotor. This mechanism ensures high-speed and high-performance impact operation. Additionally, the design of the mechanism allows the impact driver to rotate freely and not lock after the impact is applied. With this design, the only reactive force applied to the tool’s body is the increased acceleration of the impact driver. As a result, the user feels minimal torque while the torque applied to the wrench is reaching its peak.
The maximum torque of the device is 780 Newton-meters, but the output power can be adjusted in 5 settings based on the type of screw. The shaft of this Tosan ½-inch impact wrench is hardened and has a coating on the gear that prevents gear wear. Its metal body is impact-resistant, the trigger prevents dust infiltration, and its components are made of high-quality parts, all of which contribute to its increased durability. This tool has low energy consumption, minimal wear, simple maintenance, and high safety.
The Tosan P0780 IW ½-inch drive pneumatic impact wrench is a user-friendly, powerful, and well-built device that can be easily used in various industries such as assembly lines, machine part installations, automobiles, and more.
Product Specifications
Additional information
| Average air consumption | 8 L/s |
|---|---|
| No load speed | 8500 rpm |
| Maximum torque | 780 nm |
| Maximum air pressure | 90PSI- 6.3 bar |
| Drive size | 1/2 inch |
| Air inlet | Coupling 1.4 inch |
| Average air use | 3HP |
| Air hose | 10mm |
| Weight | 2.65 kg |
Product Videos
Product technical features
- Ergonomic design for ease of use.
- Powerful with a professional design.
- Features a hardened shaft.
- Equipped with a twin-hammer impact mechanism.
- Output power adjustment capability.
- Includes high-quality components to increase the tool’s lifespan.
- Equipped with a high-quality trigger to prevent dust infiltration.
- Fitted with an integrated forward and reverse lever.
- Output power adjustable in 5 settings for fastening screws with varying torque.
- Impact-resistant metal body.
- Features a hardened shaft with a special coating on the shaft gear to prevent gear wear
