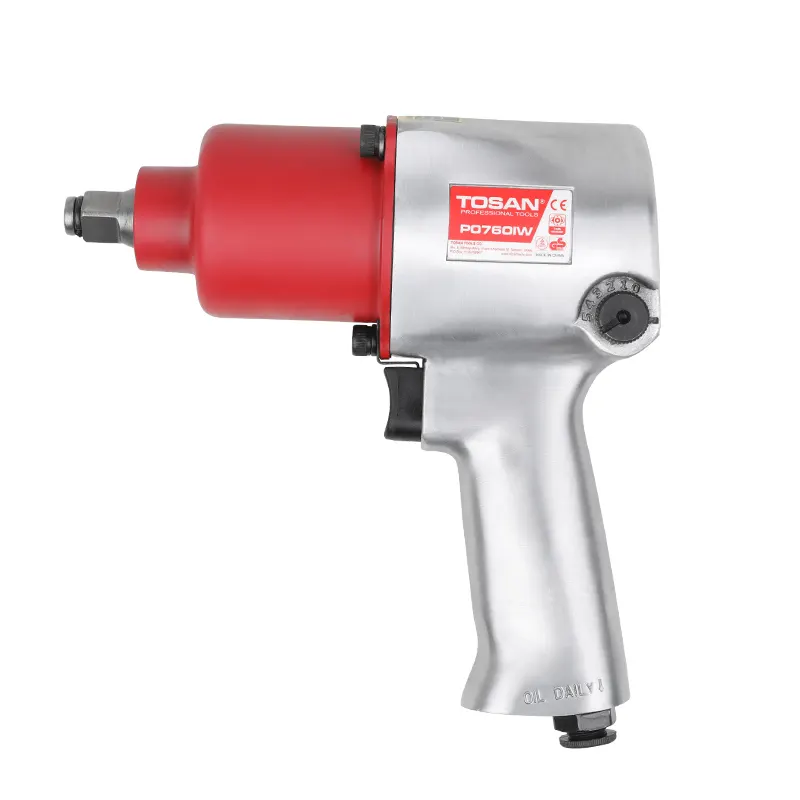

AIR IMPACT WRENCH 1/2 INCH MODEL P0760 IW
AIR IMPACT WRENCH 1/2 INCH MODEL P0760 IW
Max torque: 760Nm
Air flow range: 8 L/s
Max air pressure:90PSI- 6.3 bar
No-load speed: 8500 rpm
Product Accessories
coupling
Product Catalogs
Product Description
The P0760 IW ½-inch drive pneumatic impact wrench is one of the most commonly used tools in repair shops, oil change services, and for household and industrial applications. The maximum torque of this device is 760 Newton-meters, and it tightens and loosens screws at a speed of 8500 revolutions per minute. Additionally, its output power can be adjusted in 5 settings to provide the required torque depending on the type of screw. The mechanism of this tool is designed so that even after the impact is applied, the impact driver can rotate freely and does not lock. With this design, the only reactive force applied to the tool’s body is the increased acceleration of the impact driver. As a result, the user feels minimal torque while the torque applied to the wrench is reaching its peak.
This tool has its own unique and special advantages: it works with an air source, making it suitable for use in humid environments and near water; it consumes low energy, has minimal wear and tear, and low repair costs; it is easy to maintain and highly safe.
The tool body is made of durable metal, and its shaft is hardened with a special coating on its gear to prevent gear wear. It is also equipped with a high-quality trigger to prevent dust infiltration and damage to the device. The exhaust air outlet is designed to avoid disturbing the user, ensuring that the exhaust air is not sprayed toward them. Additionally, the ergonomic design of the device ensures comfortable use without causing hand fatigue.
In the technical specifications table of the ½-inch drive pneumatic impact wrench model P0760 IW, you will become familiar with additional features of this product.
Product Specifications
Additional information
| Average air consumption | 8 L/s |
|---|---|
| No load speed | 8500 rpm |
| Maximum torque | 760Nm |
| Maximum air pressure | 90PSI- 6.3 bar |
| Drive size | 1/2 inch |
| Air inlet | Coupling 1.4 inch |
| Average air use | 3HP |
| Air hose | 10mm |
| Weight | 2.7 kg |
Product Videos
Product technical features
- Ergonomic design for ease of use
- Powerful with a professional design
- Air outlet positioned to avoid user disturbance (exhaust underneath)
- Equipped with a twin-hammer impact mechanism
- Features a hardened shaft
- Includes high-quality components to increase the tool’s lifespan
- Output power adjustment capability
- Equipped with a high-quality trigger to prevent dust infiltration
- Fitted with an integrated forward and reverse lever
- Output power adjustable in 5 settings for fastening screws with varying torque
- Impact-resistant metal body
- Features a hardened shaft with a special coating on the shaft gear to prevent gear wear
