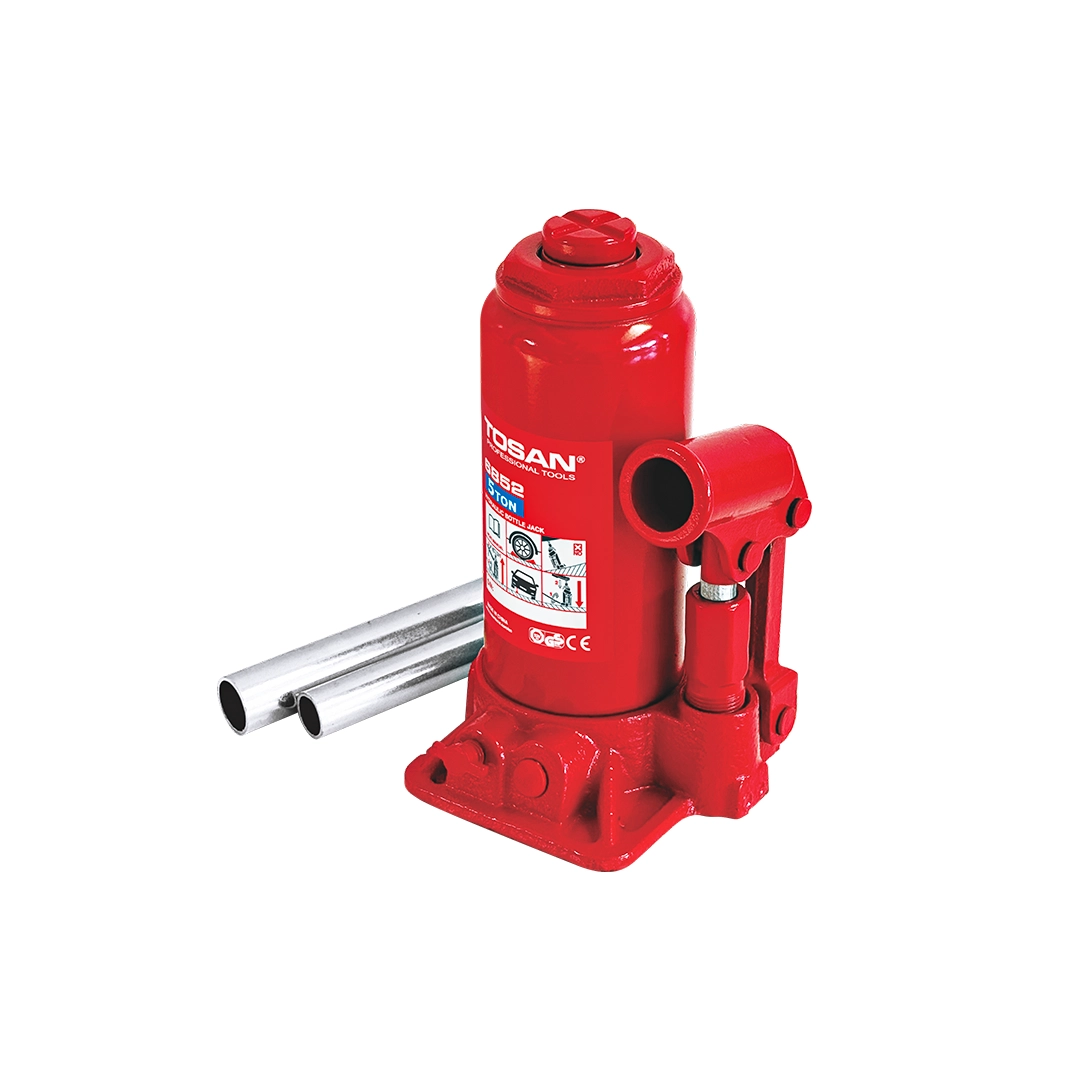

5T HYDRAULIC BOTTLE JACK

Equipped with a built-in safety valve to prevent overloading and ensure safe operation.

Features a two-piece galvanized and chrome-plated handle – Spanish-style design.

Grooved saddle (jack head screw) for enhanced safety and stability while lifting vehicles.

Wide and reinforced base plate for strong and stable load support.

Supplied with a complete O-ring repair kit for easy maintenance.

All components are sandblasted for improved surface durability and corrosion resistance.

Professional-grade, cast, and chrome-plated handle assembly for maximum strength and reliability.

Integrated safety valve cap located inside the jack body for protection and compact design.

Equipped with a rust-resistant and corrosion-proof piston for extended lifespan.

Hardened adjustment screw enables precise control of minimum and maximum lifting height.

NBR seals prevent oil leakage and protect against dust and contaminants.

Hardened cylinder and piston increase service life and wear resistance.

Galvanized handle coating ensures superior strength and corrosion protection.

Cylinder and piston made from SK45 high-strength steel with excellent impact resistance, tensile strength, and durability.

O-ring material: HN7445.

Safety valve spring material: 65Mn high-strength steel.

Handle length: 21.3×180 / 16×180 mm.

Saddle (base plate) size: 109 × 102 mm.

Body material: Q190 steel.

Handle material: Q190 steel with galvanized coating.

Hydraulic oil type: No. 15 hydraulic oil.
