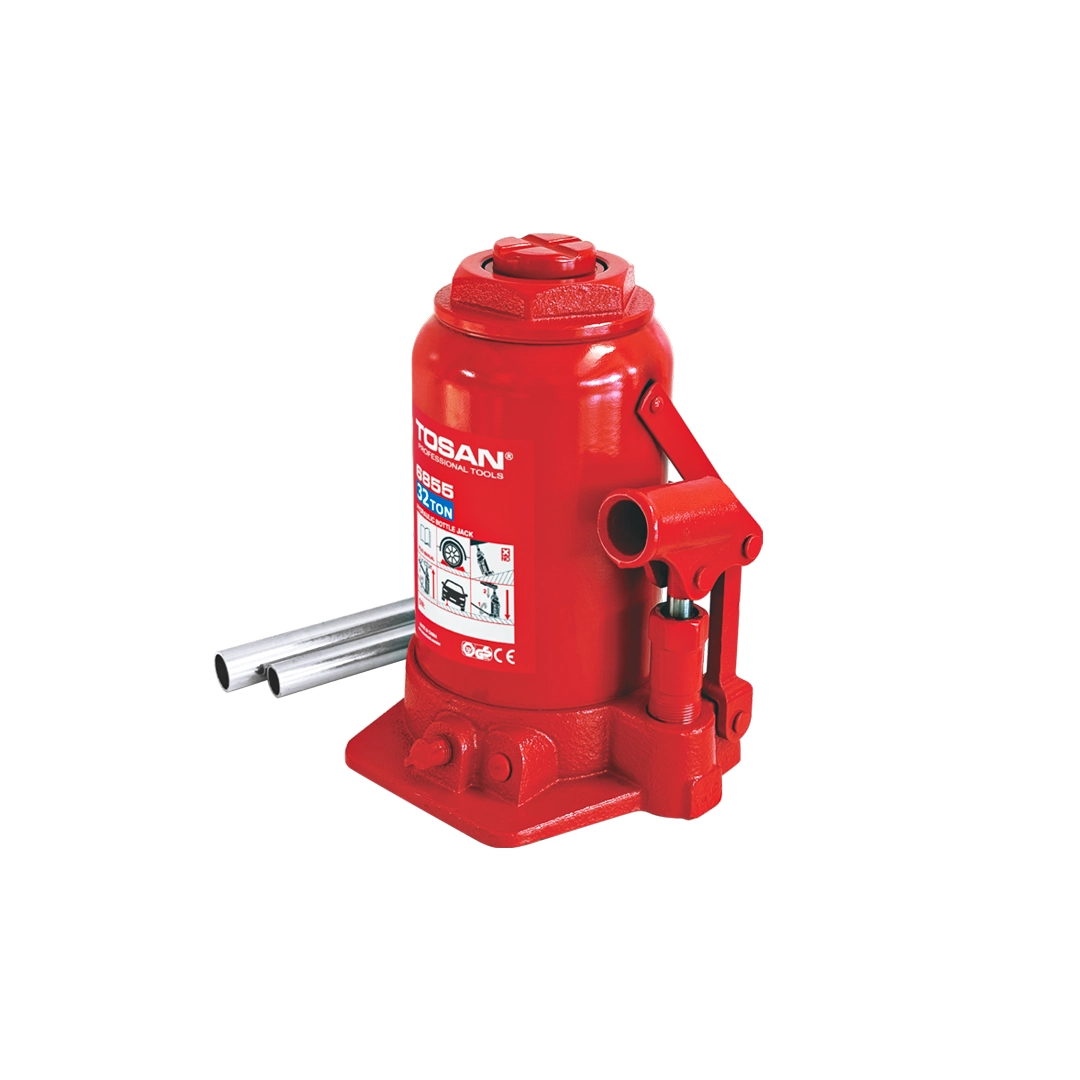

32T HYDRAULIC BOTTLE JACK
Product Code: T6855
Saddle Height (Screw Extension): 60 mm
Oil Volume: 475 mL
Cylinder Pressure During Pumping: 96 MPa
Share this on:
Product Description
Product Specifications
Additional information
| Lifting Capacity (Tonnage) | 32 tons (T) |
|---|---|
| Minimum Height | 255 mm |
| Maximum Working Height | 465 mm |
| Saddle Height (Screw Extension) | 60 mm |
| Saddle Screw Diameter | 46 mm |
| Minimum Pressure for Safety Valve Activation | 32 tons (T) |
| Maximum Pressure for Safety Valve Activation | 36.5 tons (T) |
| Cylinder Length | 185 mm |
| Cylinder Inner Diameter | 60 mm |
| Cylinder Outer Diameter | 72 mm |
| Handle Plate Thickness | 1.5 mm |
| Handle Socket Inner Diameter | 23 mm |
| Oil Volume | 475 mL |
| Lifting Height (Piston Travel) | 150 mm |
| Cylinder Pressure During Pumping | 96 MPa |
Technical Specifications
- Equipped with a built-in safety valve to prevent overloading and ensure safe operation.
- Features a two-piece galvanized and chrome-plated handle – Spanish-style design.
- Grooved saddle (jack head screw) for enhanced safety and stability when lifting vehicles.
- Wide and reinforced base plate for strong and stable load support.
- Supplied with a complete O-ring repair kit for convenient maintenance and service.
- All components are sandblasted for superior surface finish and corrosion resistance.
- Professional-grade, cast, and chrome-plated handle assembly (connection joint) for exceptional strength and reliability.
- Integrated safety valve cap located inside the jack body for added protection.
- Rust-resistant and corrosion-proof piston ensures long-term durability.
- Hardened adjustment screw for precise control of minimum and maximum lifting height.
- NBR seals prevent oil leakage and protect against dust and contaminants.
- Hardened cylinder and piston for improved durability and longer service life.
- Galvanized handle coating provides excellent strength and corrosion resistance.
- Cylinder and piston made from SK45 high-strength steel, offering superior impact resistance, tensile strength, and rigidity.
- O-ring material: HN7445.
- Safety valve spring material: 65Mn high-tensile steel.
- Handle length: 21.3×240 / 16×240 mm.
- Saddle (base plate) dimensions: 168 × 166 mm.
- Body material: Q190 steel.
- Handle material: Q190 steel with galvanized coating.
- Hydraulic oil type: No. 15 hydraulic oil.
