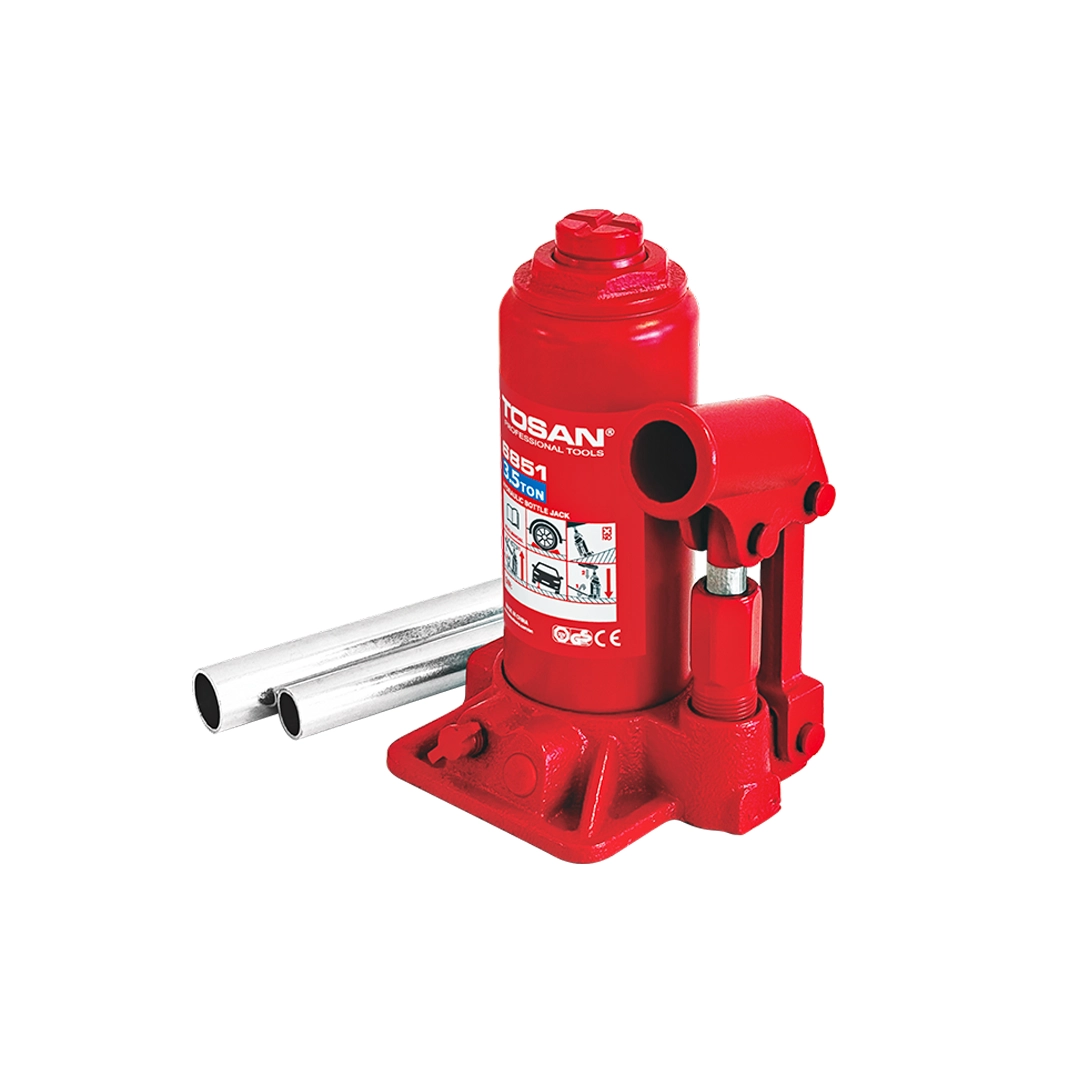

3.5T HYDRAULIC BOTTLE JACK
Product Code: T6851
Saddle Height (Screw Extension): 50 mm
Oil Volume: 102 mL
Cylinder Pressure During Pumping: 49 MPa
Share this on:
Product Description
Product Specifications
Additional information
| Lifting Capacity (Tonnage) | 3.5 tons (T) |
|---|---|
| Minimum Height | 180 mm |
| Maximum Working Height | 340 mm |
| Saddle Height (Screw Extension) | 50 mm |
| Saddle Screw Diameter | 26 mm |
| Minimum Pressure for Safety Valve Activation | 3.5 tons (T) |
| Maximum Pressure for Safety Valve Activation | 4.02 tons (T) |
| Cylinder Length | 131 mm |
| Cylinder Inner Diameter | 30 mm |
| Cylinder Outer Diameter | 36 mm |
| Handle Plate Thickness | 1.5 mm |
| Handle Socket Inner Diameter | 22 mm |
| Oil Volume | 102 mL |
| Lifting Height (Piston Travel) | 110 mm |
| Cylinder Pressure During Pumping | 49 MPa |
Technical Specifications
- Equipped with a built-in safety valve to prevent overloading and ensure safe operation.
- Features a two-piece galvanized and chrome-plated handle – Spanish-style design.
- Grooved saddle (jack head screw) provides enhanced safety and grip when lifting vehicles.
- Wide and reinforced base plate for stable and reliable load support.
- Includes a complete O-ring repair kit for maintenance and servicing.
- All components are sandblasted for improved surface finish and durability.
- Professional-grade, chrome-plated, and cast handle assembly for superior strength and performance.
- Safety valve cap integrated inside the jack body for added protection.
- Rust-resistant and corrosion-proof piston for extended service life.
- Hardened adjustment screw for precise control of minimum and maximum lifting heights.
- NBR seals used to prevent hydraulic oil leakage and protect against dust and contaminants.
- Hardened cylinder and piston for improved longevity and wear resistance.
- Galvanized handle coating provides enhanced durability and corrosion resistance.
- Cylinder and piston made from SK45 steel for superior impact resistance, tensile strength, and durability.
- O-ring material: HN7445.
- Safety valve spring material: 65Mn high-strength steel.
- Handle length: 20×180 / 16×180 mm.
- Saddle (base plate) dimensions: 102 × 112 mm.
- Body material: Q190 steel.
- Handle material: Q190 steel with galvanized coating.
- Hydraulic oil type: No. 15 hydraulic oil.
