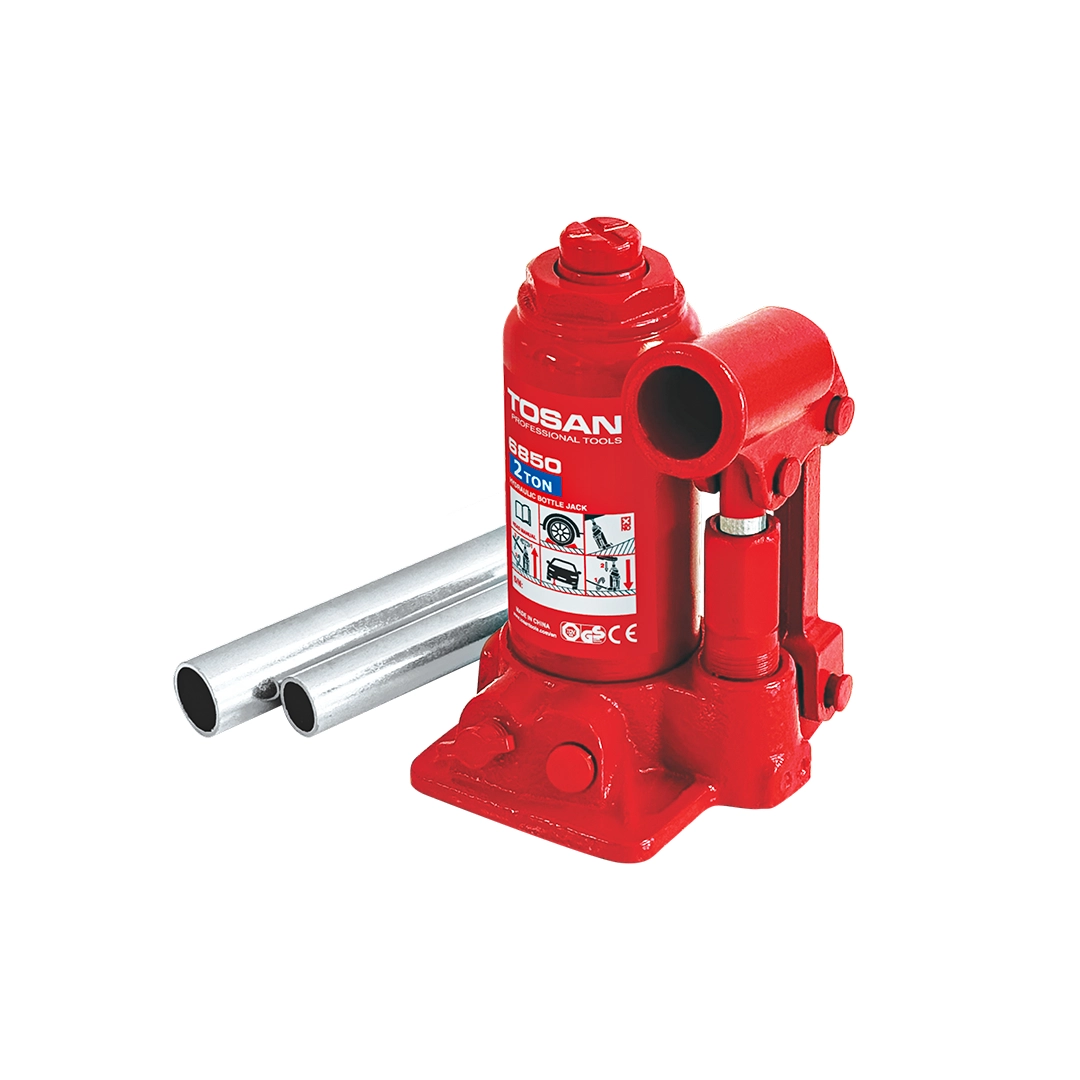

2T HYDRAULIC BOTTLE JACK
2T HYDRAULIC BOTTLE JACK
Saddle Height (Screw Extension): 50 mm
Oil Volume: 65 mL
Cylinder Pressure During Pumping: 44 MPa
Product Description
Product Specifications
Additional information
| Lifting Capacity (Tonnage) | 2 tons (T) |
|---|---|
| Minimum Height | 168 mm |
| Maximum Working Height | 318 mm |
| Saddle Height (Screw Extension) | 50 mm |
| Saddle Screw Diameter | 21 mm |
| Minimum Pressure for Safety Valve Activation | 2 tons (T) |
| Maximum Pressure for Safety Valve Activation | 2.3 tons (T) |
| Cylinder Length | 121 mm |
| Cylinder Inner Diameter | 24 mm |
| Cylinder Outer Diameter | 30 mm |
| Handle Plate Thickness | 1.5 mm |
| Handle Socket Inner Diameter | 22 mm |
| Oil Volume | 65 mL |
| Lifting Height (Piston Travel) | 100 mm |
| Cylinder Pressure During Pumping | 44 MPa |
Technical Specifications
-
Equipped with a safety valve to prevent damage to the hydraulic jack.
-
Features a two-piece galvanized and chrome-plated handle – Spanish-style design.
-
Includes a grooved saddle (jack head screw) for enhanced safety while lifting vehicles.
-
Wide and highly durable base plate for stable load support.
-
Supplied with a complete O-ring repair kit.
-
All components are sandblasted for a clean and durable finish.
-
Professional-grade, chrome-plated, cast handle assembly (handle joint) for superior strength and durability.
-
Safety valve cap integrated inside the jack body.
-
Equipped with a corrosion-resistant and rust-proof piston.
-
Hardened adjustment screw for setting both minimum and maximum lifting heights.
-
Uses NBR seals to prevent oil leakage and protect against dust contamination.
-
Hardened cylinder and piston ensure extended service life.
-
Galvanized handle coating provides additional strength and corrosion resistance.
-
Cylinder and piston made of SK45 high-strength steel, offering excellent impact resistance, tensile strength, and durability.
-
O-ring material: HN7445.
-
Safety valve spring material: 65 Mn steel.
-
Handle length: 20×150 / 16×150 mm.
-
Handle connection dimensions: 20×150 / 16×150 mm.
-
Saddle (lifting pad) size: 90×90 mm.
-
Body material: Q190 steel.
-
Handle material: Q190 steel with galvanized coating.
-
Hydraulic oil type: No. 15 hydraulic oil.
