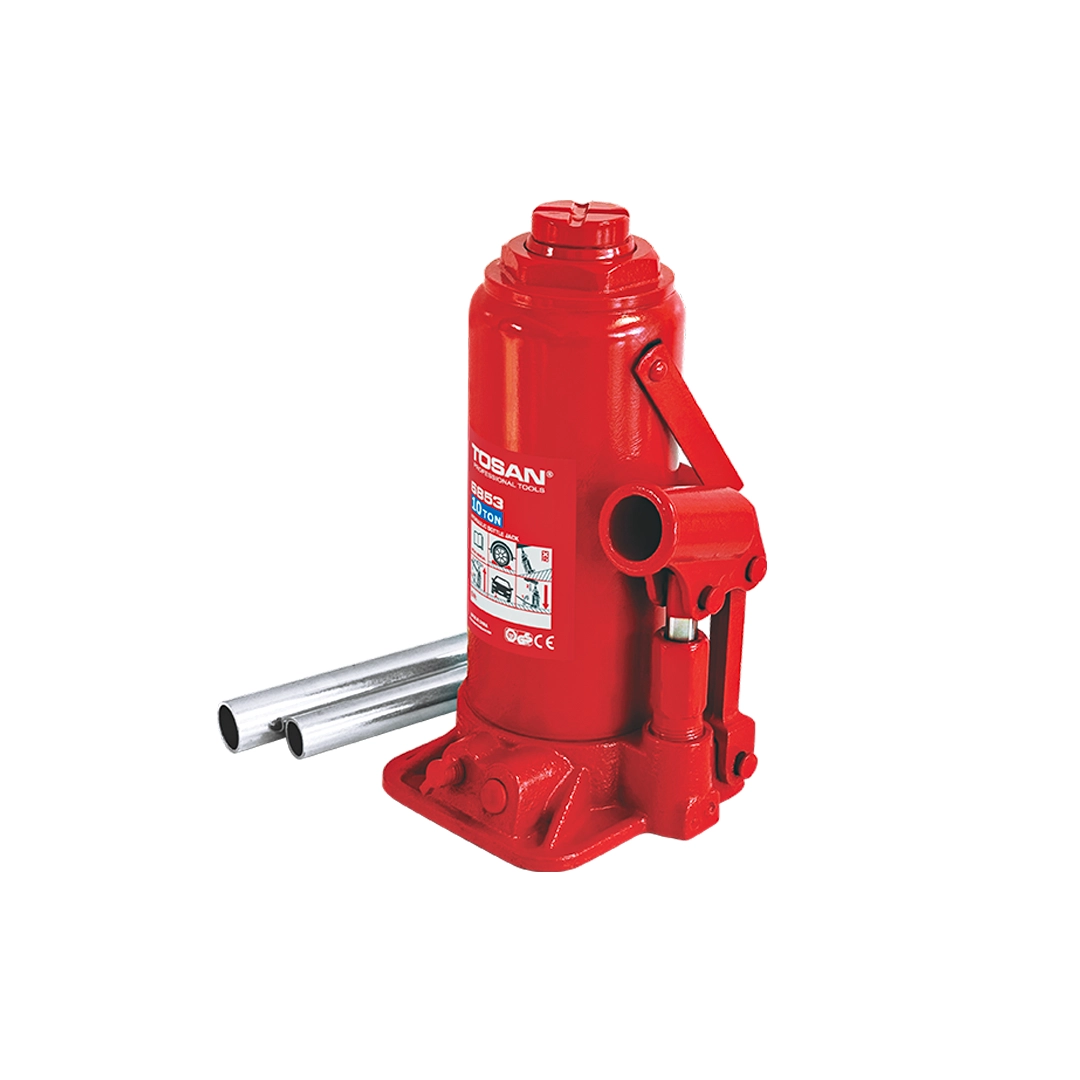

10T HYDRAULIC BOTTLE JACK
Product Code: T6853
Saddle Height (Screw Extension): 110 mm
Oil Volume: 224 mL
Cylinder Pressure During Pumping: 72.5 MPa
Share this on:
Product Description
Product Specifications
Additional information
| Lifting Capacity (Tonnage) | 10 tons (T) |
|---|---|
| Minimum Height | 230 mm |
| Maximum Working Height | 500 mm |
| Saddle Height (Screw Extension) | 110 mm |
| Saddle Screw Diameter | 36 mm |
| Minimum Pressure for Safety Valve Activation | 10 tons (T) |
| Maximum Pressure for Safety Valve Activation | 11.5 tons (T) |
| Cylinder Length | 177 mm |
| Cylinder Inner Diameter | 42 mm |
| Cylinder Outer Diameter | 52 mm |
| Handle Plate Thickness | 1.5 mm |
| Handle Socket Inner Diameter | 23 mm |
| Oil Volume | 160 mL |
| Lifting Height (Piston Travel) | 224 mm |
| Cylinder Pressure During Pumping | 72.5 MPa |
Technical Specifications
- Equipped with a built-in safety valve to prevent overloading and ensure safe operation.
- Features a two-piece galvanized and chrome-plated handle – Spanish-style design.
- Grooved saddle (jack head screw) for improved safety and stability when lifting vehicles.
- Wide and reinforced base plate for strong and stable load support.
- Supplied with a complete O-ring repair kit for convenient maintenance.
- All components are sandblasted for enhanced surface finish and corrosion resistance.
- Professional-grade, cast, and chrome-plated handle assembly (joint section) for superior strength and durability.
- Integrated safety valve cap located inside the jack body for compact protection.
- Rust-resistant and corrosion-proof piston ensures long-lasting performance.
- Hardened adjustment screw for precise control of minimum and maximum lifting height.
- NBR seals used to prevent oil leakage and protect against dust and contaminants.
- Hardened cylinder and piston provide extended service life and high wear resistance.
- Galvanized handle coating for enhanced strength and corrosion protection.
- Cylinder and piston made of SK45 high-strength steel, offering excellent impact resistance, tensile strength, and durability.
- O-ring material: HN7445.
- Safety valve spring material: 65Mn high-tensile steel.
- Handle length: 21.3×180 / 16×180 mm.
- Handle joint dimensions: 21.3×180 / 17×180 mm.
- Saddle (base plate) size: 110 × 118 mm.
- Body material: Q190 steel.
- Handle material: Q190 steel with galvanized coating.
- Hydraulic oil type: No. 15 hydraulic oil.
