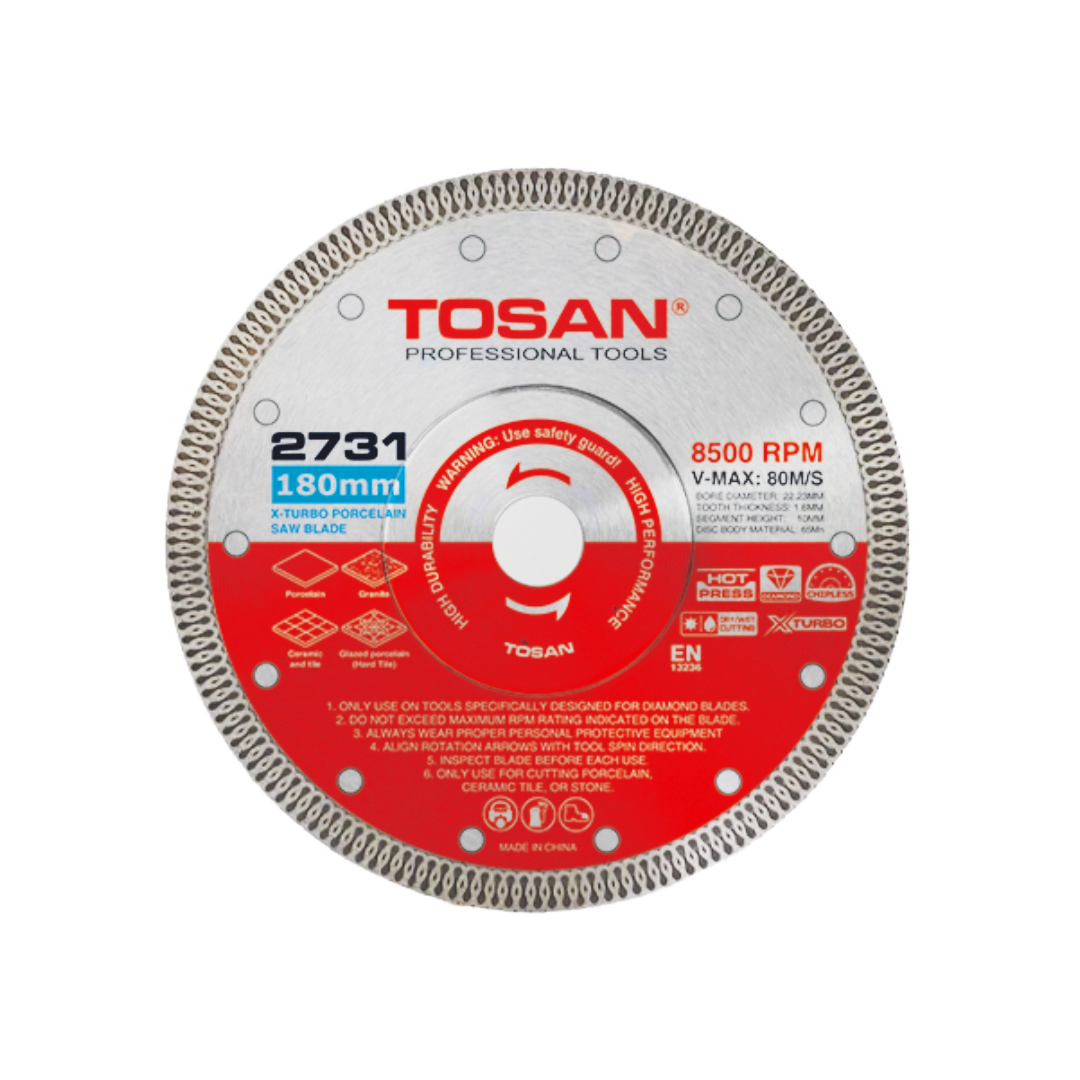

X-TURBO PORCELAIN SAW BLADE SIZE 180MM
X-TURBO PORCELAIN SAW BLADE SIZE 180MM
Disc Material : 65Mn
Axis diameter : 22.23Mm
Product Description
Product Specifications
Additional information
| Disc Material | 65Mn |
|---|---|
| Manufacturing Method | hot press |
| Disc Diameter | 180 mm |
| Segment Thickness | 1.6 mm |
| Segment Height | 10 mm |
| Maximum Operating Speed | 8,500 RPM |
| Maximum Cutting Speed | 80 m/s |
Technical Specifications
-
10 mm High Diamond Segments: Equipped with extra-long 10 mm diamond segments for faster and smoother cutting performance.
-
Applications: Designed for cutting ceramic tiles and porcelain materials with precision.
-
High Body Strength: Reinforced disc body prevents warping or deformation during high-speed cutting.
-
Body Material: Made of 65Mn manganese steel for optimal toughness and stability.
-
Hot-Pressed Manufacturing Process: Produced using hot-press technology ensuring high dimensional accuracy and durability.
-
Extended Service Life: Higher diamond segment density provides longer lifespan and increased cutting length per disc.
-
Premium Diamond Segment Material: Manufactured from high-quality raw materials for enhanced performance.
-
High Diamond Concentration: Ensures sharper and faster cutting efficiency with minimal effort.
-
Chip-Free Cutting: Delivers clean, precise cuts without edge chipping or surface damage.
-
Segment Composition: Diamond segments composed of Copper, Cobalt, Nickel, Iron, Zinc Powder, and other advanced alloys.
-
Segment Type: Continuous Rim (Continuous Segment) for smooth and fine finishing on ceramic and porcelain surfaces.
