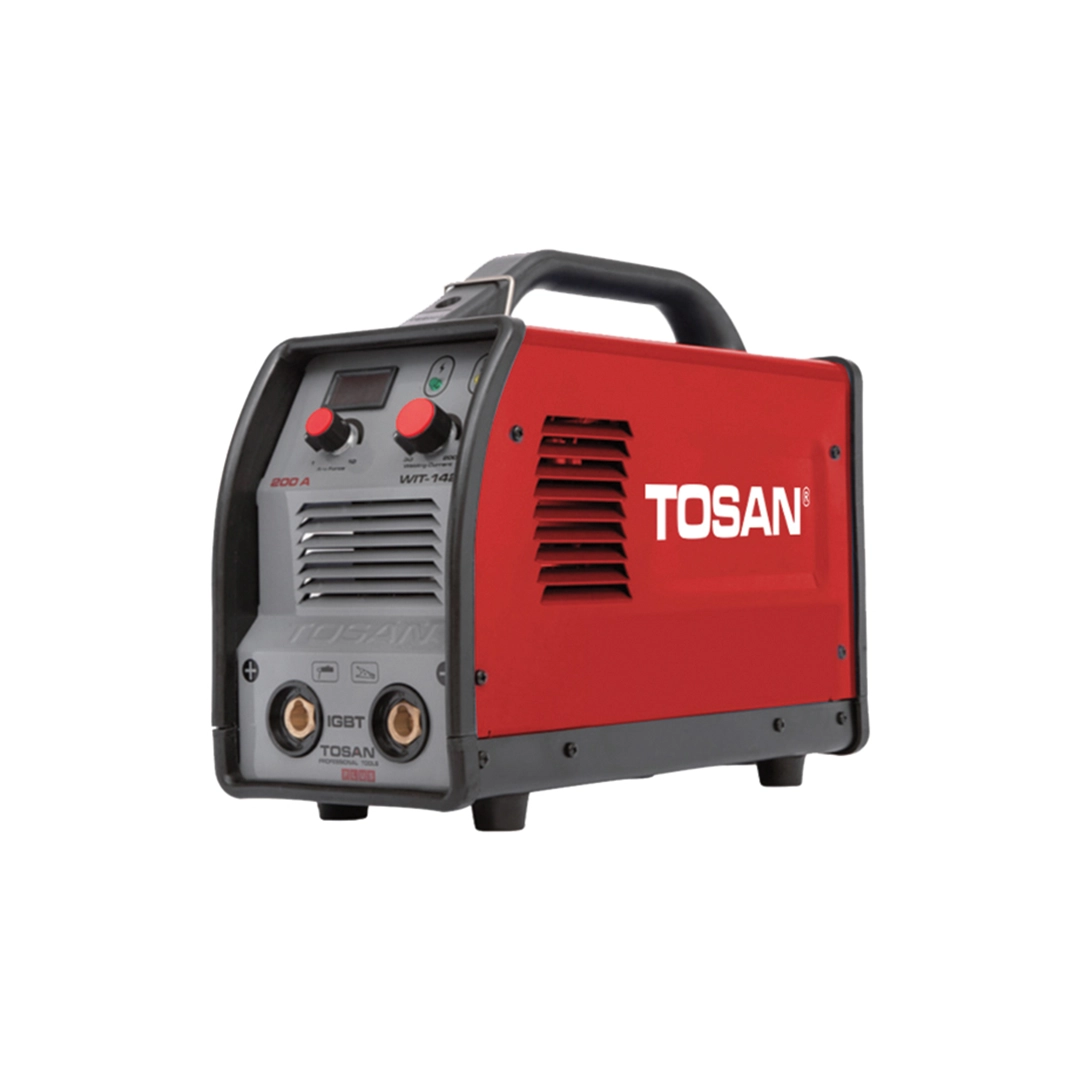

WELDING INVERTER 200AMP 1420 IX
Product Code: 1420IX
Input voltage: 220 single phase
Output voltage: 30 V
Output ampere: 30-200 A
Protection class: IP21
Categories: Welding & Cutting Tools, Welding Inverter
Share this on:
Product Accessories
2 pcd male socket
Product Catalogs
Product Description
The Tosan 210-amp welding inverter, made in China, model 1420IX with product code 1420 IX. This product is a powerful and engineered tool, equipped with 8 high-quality IGBTs and real 210-amp output. This tool is equipped with 3 separate boards for better performance and can connect to an 11-15 kilowatt generator. Due to its digital output amperage display, it provides the ability to monitor and precisely adjust the output current, and weighs 8.6 kilograms
Product Specifications
Additional information
| Input voltage | 220 volts single phase |
|---|---|
| Output voltage | 30 v |
| Output amper | 30-200 A |
| Operating frequency | 50 hz |
| Working efficiency | 60% |
| Duty cycle | 85% |
| Max input current | A40 |
| Protection class | IP21 |
| Maximum input power capacity | 9.2 kva |
| Max using power | 9.2KW |
| Cable length | 3m |
| Weight | 8.7 kg |
Product Videos
Product technical features
- Continuous operation capability (with electrode size 4) up to 160 amperes current.
- Ability to work with 60 percent duty cycle for maximum current (210 amperes).
- Equipped with IGBT system to reduce power loss and achieve higher efficiency.
- Equipped with 3 separate boards for better tool performance.
- Ability to connect to 11-15 kilowatt generator.
- Generator connection capability.
- Ability to adjust welding arc (Arc Force).
- Capability to weld with various alloy electrodes.
- Equipped with high-quality selector model power switch.
- Proper body insulation for complete ventilation of electronic boards.
- Features digital output amperage display.
- Has high-quality and durable metal body.
- Includes 3-meter power cable (size 4) with thick coating.
- Contains quality components to increase tool lifespan.
