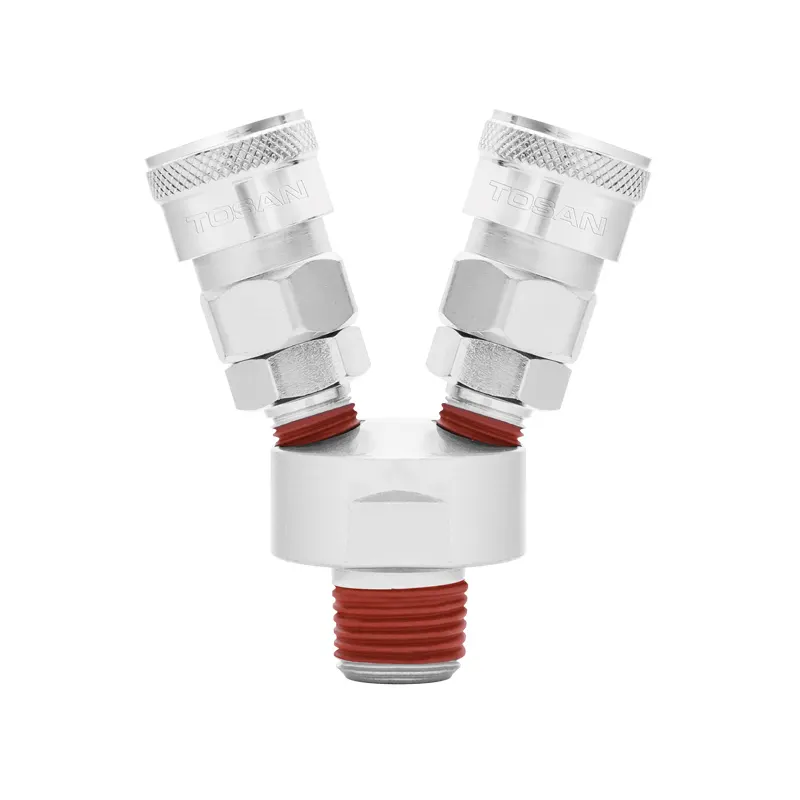

MULTI-WAY MANIFOLDS
Loading...
MULTI-WAY MANIFOLDS
Body material : Steel
Working pressure : 15 bar
Max pressure : 20 bar
Out body material : brass
Categories: Accessories, Couplers
Share this on:
Product Description
Product Specifications
Additional information
| Body material | Steel ck20 |
|---|---|
| Working pressure | 15 bar |
| Maximum pressure | 20 bar |
| Working temperature | 20 – 80°C |
Technical Specifications
- Body made from rolled alloy steel instead of dry lead.
- Hardened to prevent corrosion and leakage.
- Produced in different sizes: 1/2, 3/8, 1/4 inch.
- Available in internal thread, external thread, and hose connector models.
- Produced in both normal and automatic male and female types.
- Features high-quality internal components resistant to corrosion.
- Uses 4 large balls instead of 6 small balls for better coupling grip.
- Capable of use in temperatures from -20 to +80 degrees Celsius.
- Able to withstand pressure up to 20 bar.
- Equipped with high-quality one-way shutoff valve in female couplings.
- Suitable for various high-pressure air and hydraulic equipment.
