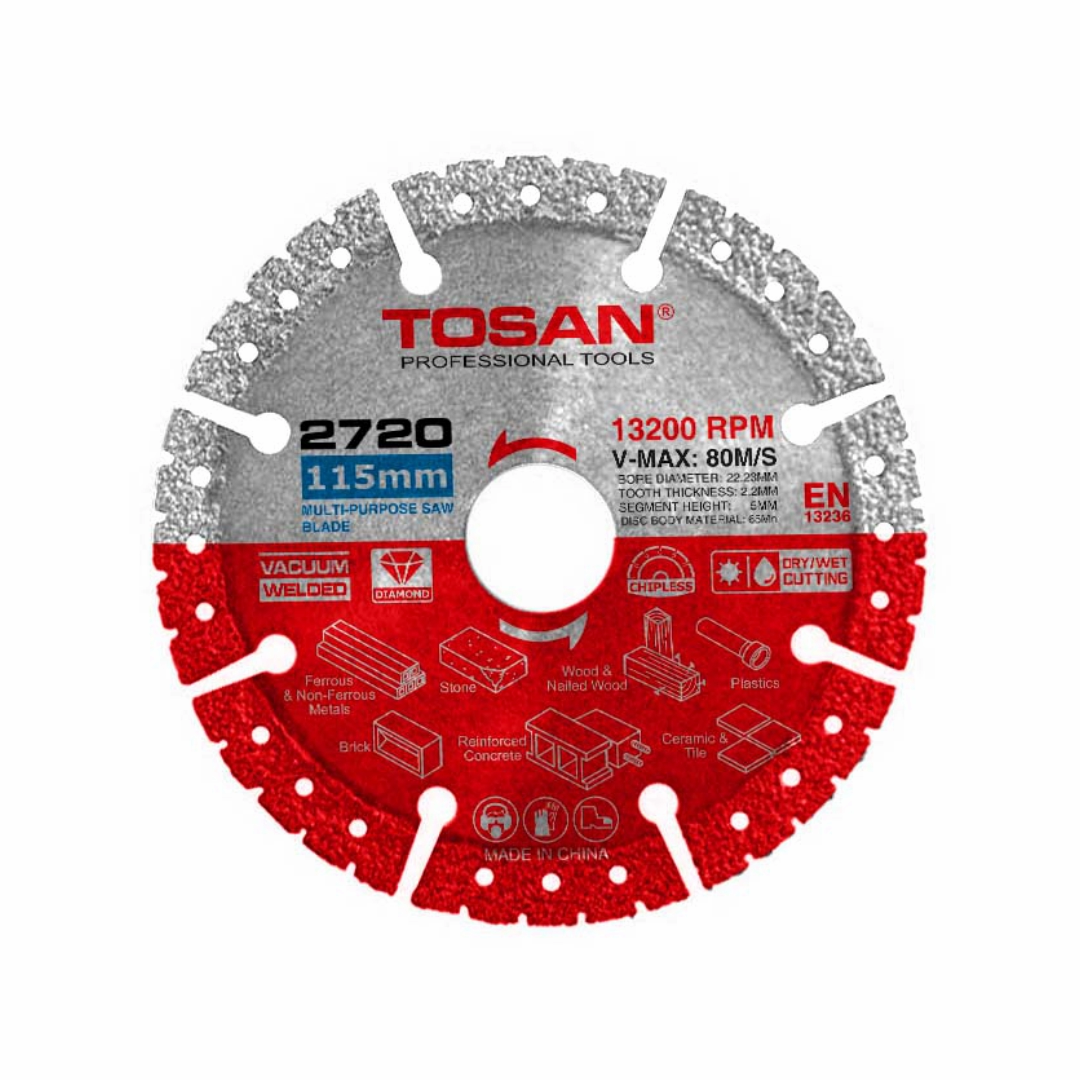

MULTI-PURPOSE BLADE SIZE 115MM
Product Code: 2720
Disc Material : 65Mn
Bore Diameter : 22.23Mm
Share this on:
Product Description
Product Specifications
Additional information
| Disc Material | 65Mn |
|---|---|
| Manufacturing Method | hot press |
| Disc Diameter | 115 mm |
| Bore Diameter | 22.23 mm |
| Segment Thickness | 2.2 mm |
| Segment Height | 5 mm |
| Maximum Operating Speed: | 13,200 RPM |
| Maximum Cutting Speed | 80 m/s |
Technical Specifications
- 5 mm High Diamond Segments: Designed with extra-long 5 mm diamond segments for faster and smoother cutting performance.
- Wide Range of Applications: Suitable for cutting ferrous metals, stone, brick, non-ferrous metals, concrete, plastic, wood, and nail-embedded wood.
- High Body Strength: Reinforced disc body prevents warping or deformation during heavy-duty cutting operations.
- Body Material: Constructed from 65Mn manganese steel for maximum toughness and durability.
- Manufacturing Method: Produced using hot-press technology, ensuring high dimensional precision and consistent quality.
- Extended Service Life: Dense diamond segment composition delivers longer lifespan and greater cutting length per disc.
- Premium Diamond Segment Material: Manufactured using high-quality raw materials for improved sharpness and performance.
- High Diamond Concentration: Provides enhanced cutting efficiency and superior sharpness.
- Chip-Free Cutting Performance: Ensures clean, precise cuts without edge chipping or material damage.
- Segment Composition: Made of 100% diamond segments for exceptional cutting power and durability.
