Jig Saw 550 W model 5093 AF

Product Code: 5093AF

power : 550 w

No-load speed : 1000 – 3000 course per minute

Base adjusting angles : 0-15-30-45 degree

Categories: Power Tools, Jigsaw, Simple Jigsaw

Share this on:

Vertical blade

Special protractor

Dust transfer nozzle

2 Allen wrenches

Liner needle

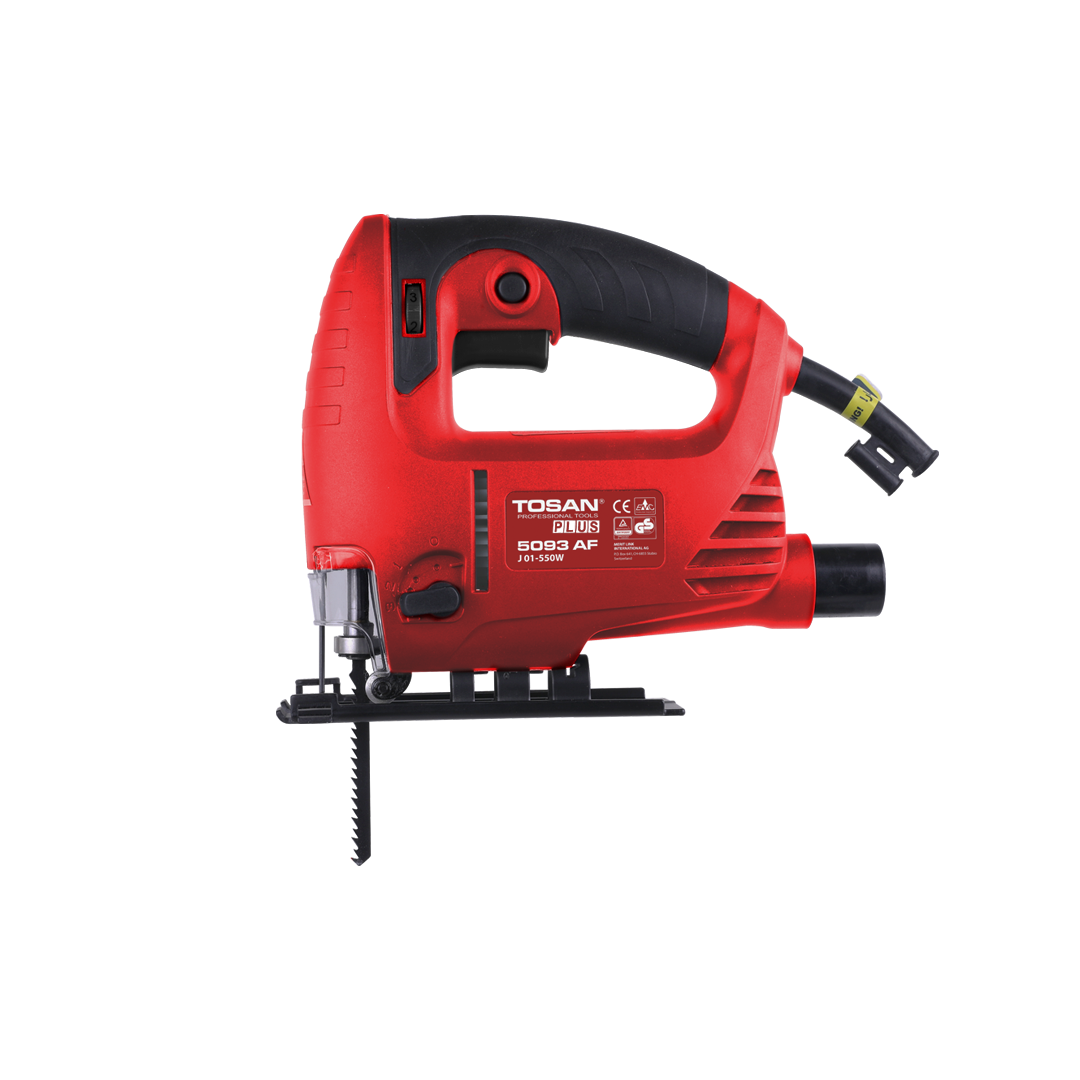

The Tosan Electric Jig Saw (Model 5093AF, 550W) is a precise and versatile cutting tool designed for high-accuracy performance across a wide range of materials, including wood, plywood, MDF, fiberboard, aluminum, plastic, and thin metal sheets.

Engineered for precision cutting, this tool allows users to perform angular and curved cuts with exceptional control and smooth operation.
One of the key advantages of this model is its quick blade change system, which enables fast and tool-free blade replacement — significantly minimizing downtime and improving workflow efficiency.

The variable speed control feature allows users to adjust the cutting speed according to the type of material and application, ensuring clean and accurate results every time.
For continuous operation, the jig saw is equipped with a lock-on switch, while the ergonomic anti-vibration handle ensures user comfort and stable handling during prolonged use.

Additionally, the dust extraction system enables easy connection to industrial vacuum units, maintaining a clean and safe working environment.

Additional information

Power	550 w
Frequency	50-60 Hz
Voltage	220- 240 V
No load speed	1000-3000 rpm
Base adjustable angles	0-15-30-45 degrees
Blade movable range	20 mm
Max cutting thickness in aluminum	10 mm
Max cutting thickness in steel	6 mm
Max cutting thickness in wood	65 mm
Cable length	3m
Weight	2.5 kg

Powerful 550W Motor: Equipped with a true 550-watt motor for consistent cutting performance on various materials.
6-Speed Electronic Control (Dimmer): Features a 6-position electronic speed control dial, allowing precise adjustment of cutting speed based on material type and thickness.
4-Stage Pendulum Action: Adjustable 4-position orbital (pendulum) blade movement for efficient cutting of wood, metal, and composite materials.
Vacuum Compatibility: Compatible with industrial vacuum systems, ensuring a cleaner workspace by effective dust extraction.
Adjustable Metal Base Plate: Fitted with a tilt-adjustable metal shoe for precise bevel cuts at multiple angles.
Lock-On Switch: Includes a lock-on button for continuous operation, improving control and reducing user fatigue.
Dust-Proof Power Switch: Designed with a dust-resistant trigger switch to enhance tool reliability and performance.
Ergonomic Handle with Anti-Sweat Grip: The ergonomic, anti-slip handle features an anti-perspiration coating for maximum comfort and control during extended use.
Heavy-Duty 3m Power Cord: Equipped with a 3-meter thick insulated cable for greater mobility and safety.
High-Quality Internal Components: Built with premium-grade parts to ensure durability and extended tool life.
Adjustable Cutting Angles: The adjustable base allows bevel cuts at 0°, 15°, 30°, and 45° for versatile cutting applications.
