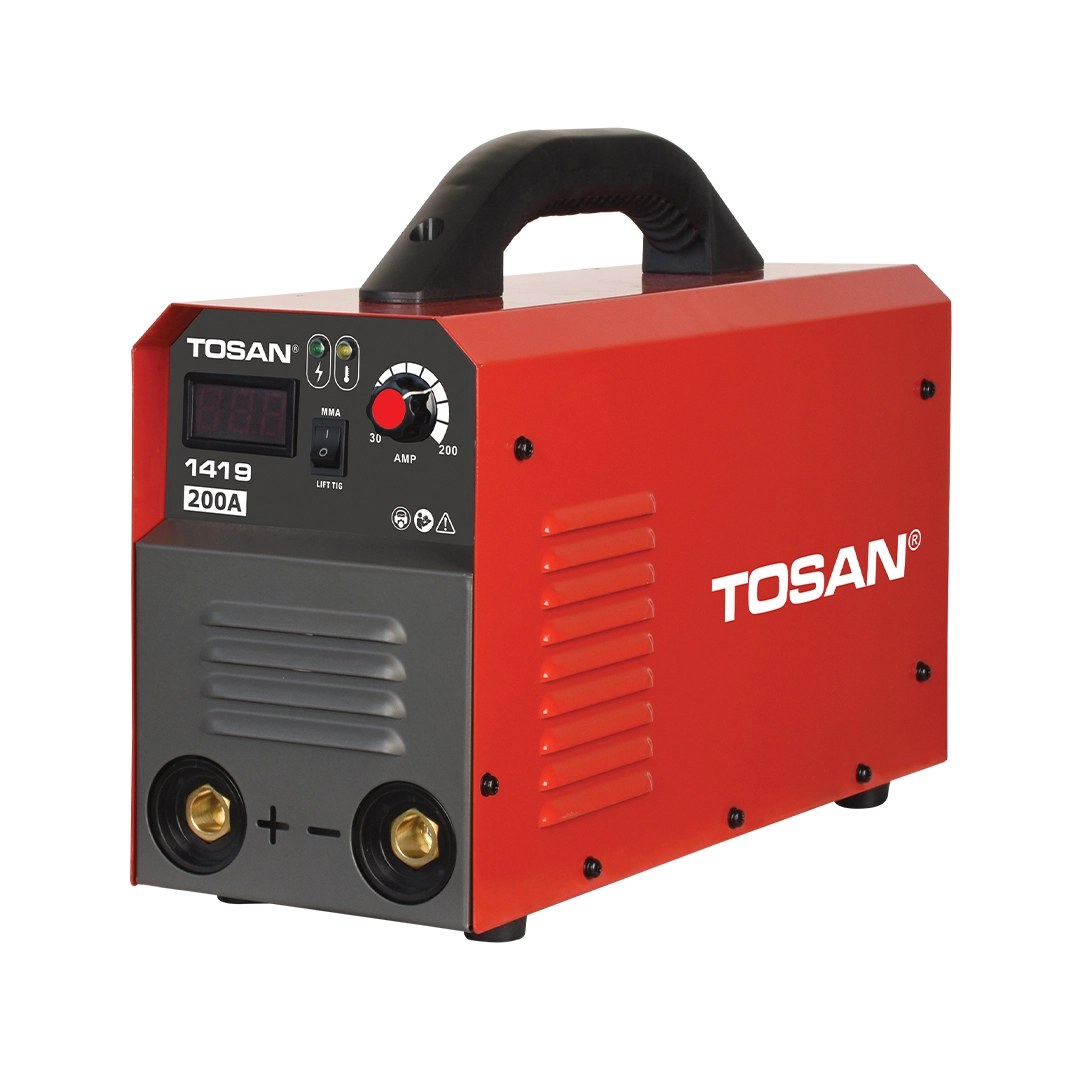

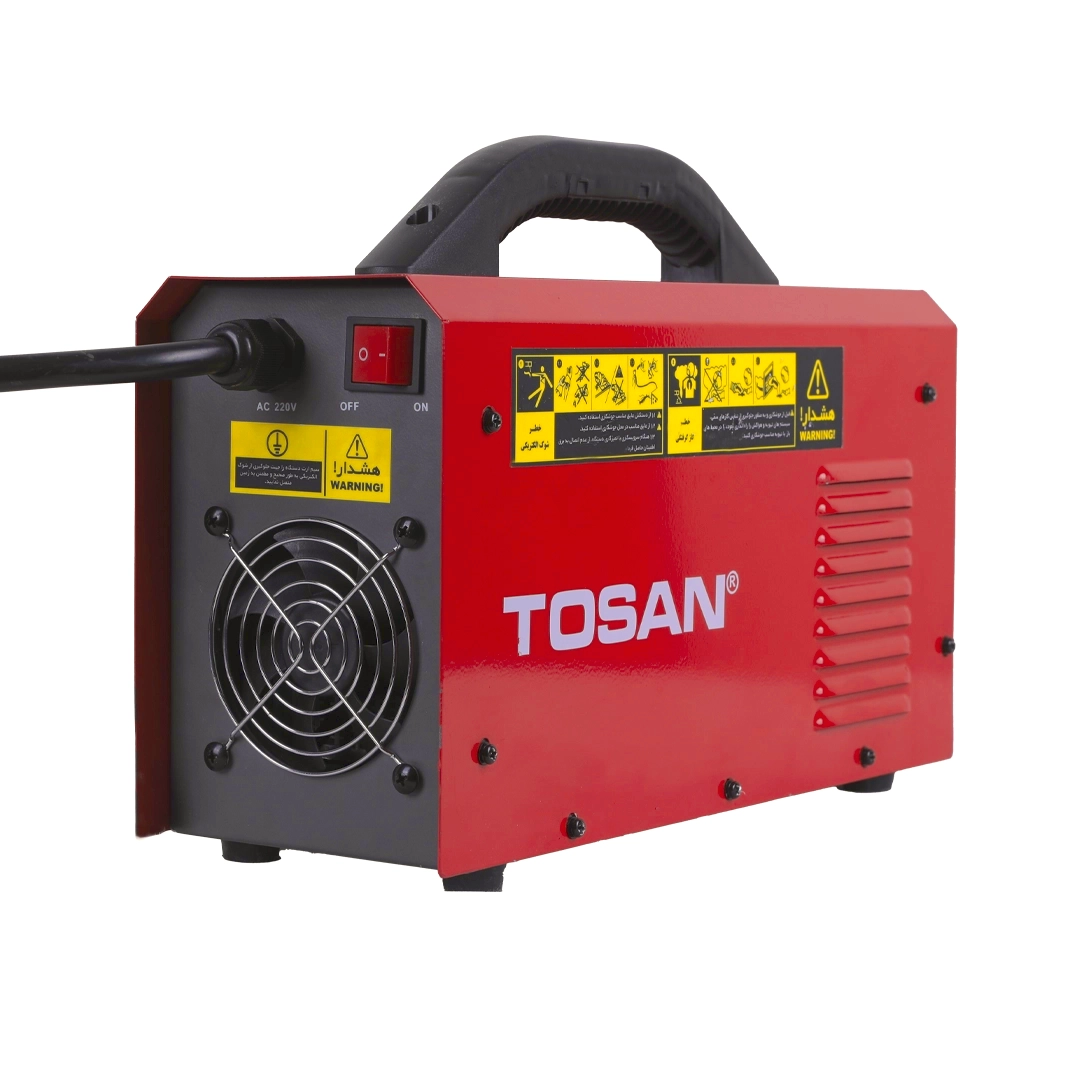

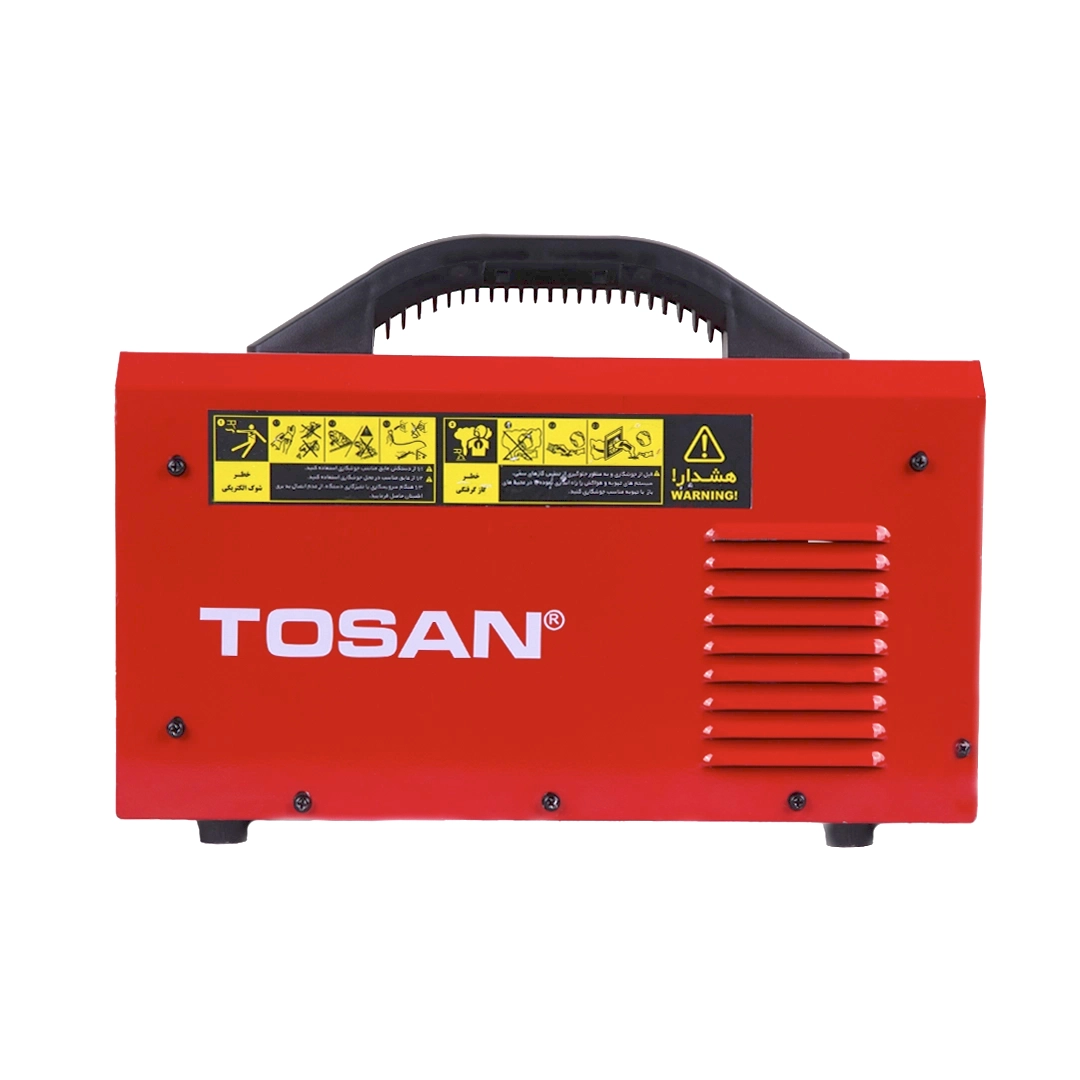

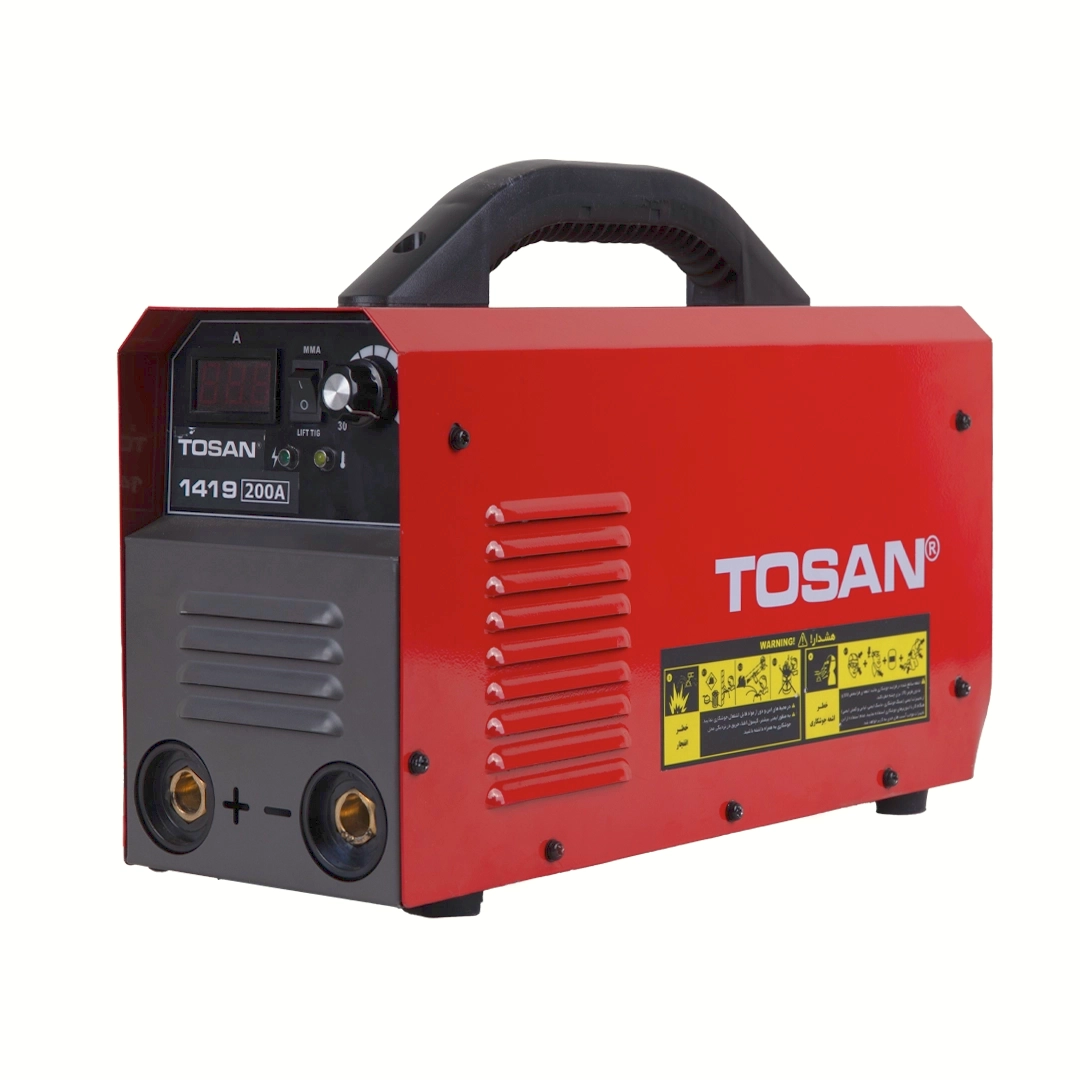

IGBT WELDING INVERTER MACHINE 200A MODEL 1419
IGBT WELDING INVERTER MACHINE 200A MODEL 1419
Input voltage: 220 v
Output voltage: 28V
Output ampere: 200A
Protection class: IP21
Product Accessories
50mm connection
2pcd male socket
Product Catalogs
Product Description
The Tosen 200-amp welding inverter model 1419, made in China, is a very powerful device from Tosen’s welding and cutting tool subdivision with 24 months warranty, featuring a maximum input current of 200 amps. It is equipped with 4 capacitors of 560 microfarads and an IGBT system to reduce power loss, which increases work efficiency. Additionally, this device weighs 6.5 kilograms and features a powerful fan as a cooling system to prevent overheating. Among other features of this product is its anti-stick capability that prevents the electrode from sticking to the workpiece
Product Specifications
Additional information
| Input voltage | 220 volts |
|---|---|
| Output voltage | 28 v |
| Output ampere | 200A |
| Duty cycle | 60% |
| Effciency | 85% |
| Standard safety class | F |
| Protection class | IP21 |
| Max input current | 32A |
| Max using power | 7KW |
| Weight | 6.5 kg |
Product Videos
Product technical features
- Real 200 ampere output.
- Equipped with 4 high-quality 60N60 IGBTs.
- Continuous operation capability with electrode sizes 1.6 to 4.
- Equipped with 4 capacitors of 560 microfarads.
- Capable of continuous operation with 60 percent duty cycle for maximum current (200 amperes).
- Ability to weld with various alloy electrodes.
- Features digital output amperage display.
- Can connect to generators above 10KW.
- Equipped with IGBT system for reduced power loss and higher efficiency.
- Proper body insulation for ventilation and cooling of electronic boards.
- Equipped with Anti-Stick system to prevent electrode sticking to workpiece.
- Features HOT START capability (automatic voltage and amperage range adjustment at start) for beginner user convenience.
- Automatic Arc force adjustment capability for output voltage and weld penetration depth control.
- High-quality and durable metal body with front and back metal panels.
- Includes 2-meter power cable (3*3) without plug.
- Features plastic carrying handle.
- Equipped with 30 ampere power switch.
- Equipped with 60 ampere diode bridge and 40 ampere relay.
- Features high-speed 4500 RPM fan (24 volt).
- Equipped with temperature sensor and warning light (OC) and ready-to-work indicator.
- Full bridge switching circuit design for optimal device efficiency and performance.
- Equipped with high-quality transformer and PCB.
- Features cutoff system.
- Includes Tig switch for use with argon welding tools.
