IGBT WELDING INVERTER MACHINE 180A MODEL 1418
Product Code: 1418
Input voltage: 220 v
Output voltage: 27.2V
Output ampere: 180A
Protection class: IP21
Categories: Welding & Cutting Tools, Welding Inverter
Share this on:
Product Accessories
2pcd male socket
50mm connection
Product Catalogs
Product Description

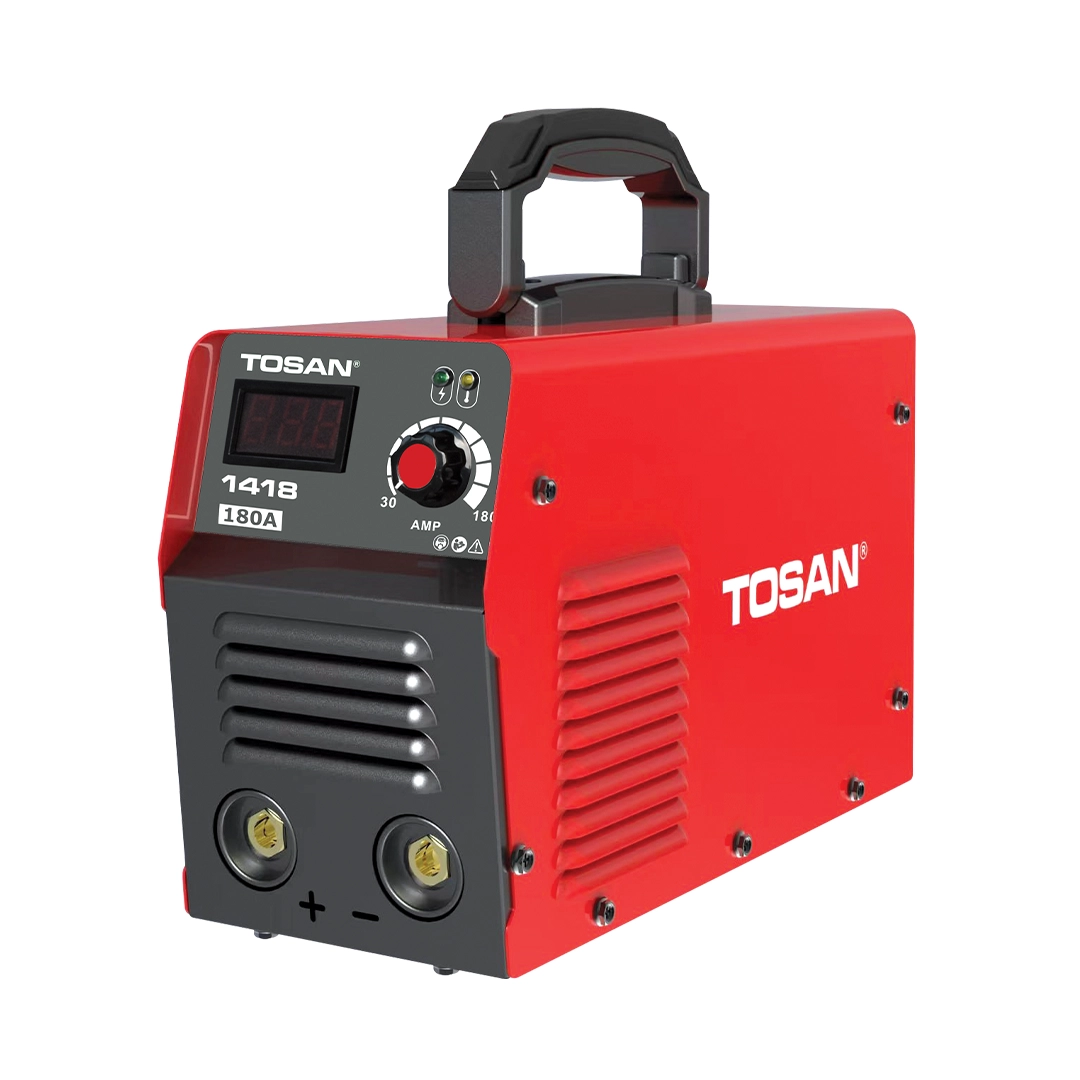

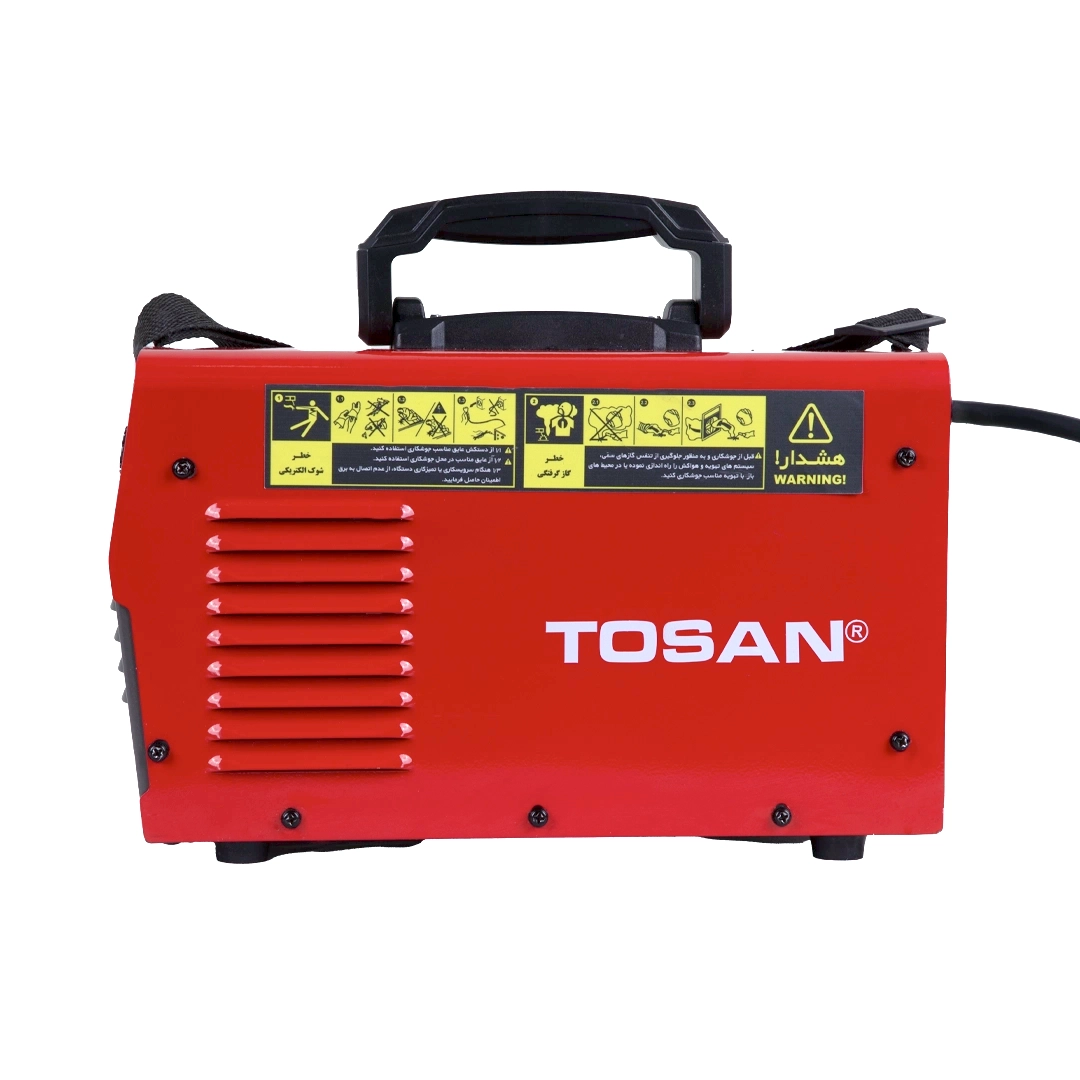

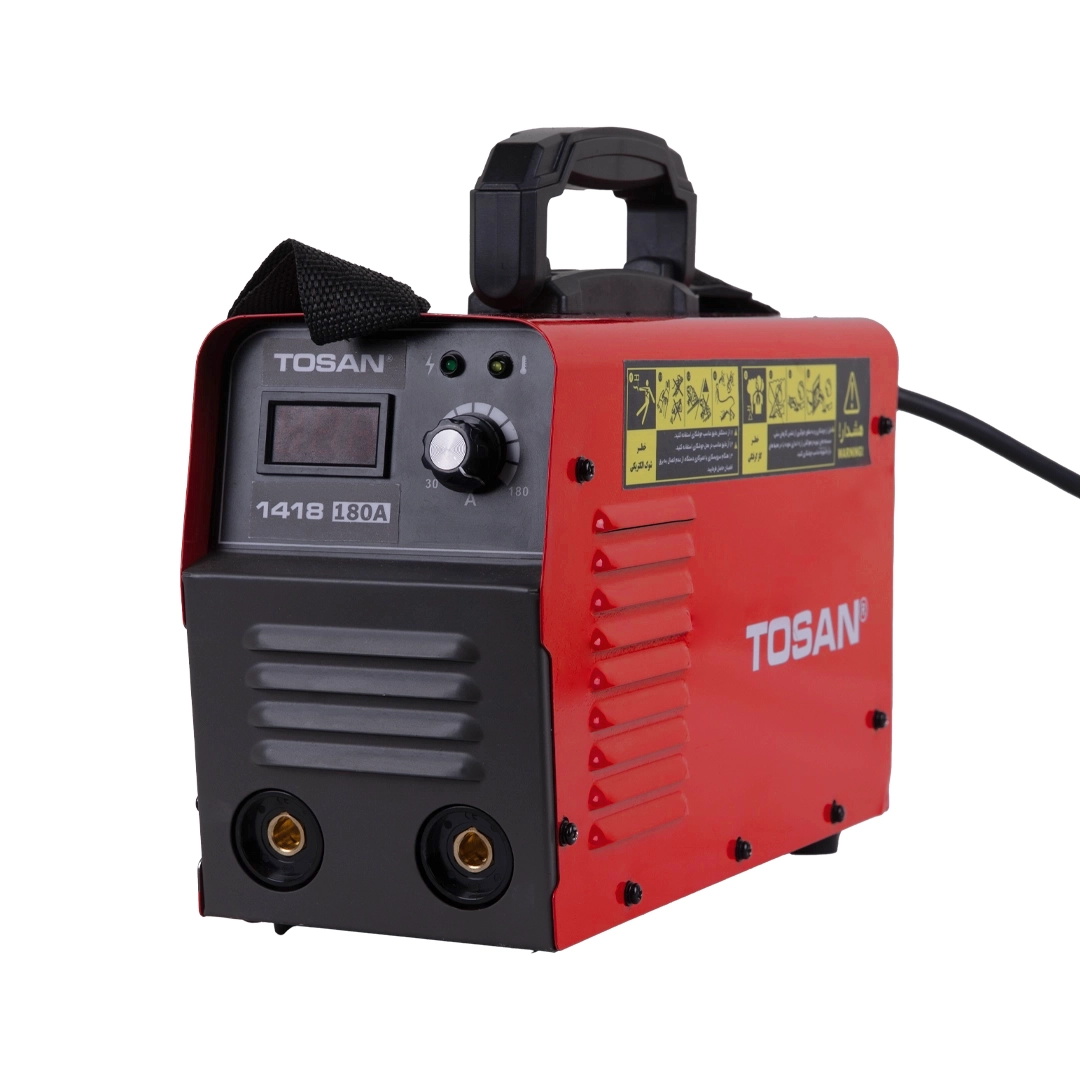

The Tosen 180-amp welding inverter, made in China model 1418, is a very powerful device from Tosen’s welding and cutting tool subdivision, with a maximum input current of 180 amps. It is equipped with 4 capacitors of 470 microfarads and an IGBT system to reduce power loss, which increases work efficiency. Additionally, this device weighs 4.5 kilograms and features a powerful fan as a cooling system to prevent overheating.
Product Specifications
Additional information
| Input voltage | 220 volts |
|---|---|
| Output voltage | 27/2 v |
| Output ampere | 180A |
| Duty cycle | 60% |
| Effciency | 85% |
| Standard safety class | F |
| Protection class | IP21 |
| Max input current | 39.5A |
| Max using power | 6KW |
| Weigh | 4.5 Kg |
Product Videos
Product technical features
- Real 180 ampere output.
- Equipped with 4 high-quality 60N60 IGBTs.
- Continuous operation capability with electrode sizes 1.6 to 3.2.
- Equipped with 4 capacitors of 470 microfarads.
- Capable of continuous operation with 60 percent duty cycle for maximum current (180 amperes).
- Ability to weld with various alloy electrodes.
- Features digital output amperage display.
- Can connect to generators above 6KW.
- Equipped with IGBT system for reduced power loss and higher efficiency.
- Proper body insulation for ventilation and cooling of electronic boards.
- Equipped with Anti-Stick system to prevent electrode sticking to workpiece.
- Features HOT START capability (automatic voltage and amperage range adjustment at start) for beginner user convenience.
- Automatic Arc force adjustment capability for output voltage and weld penetration depth control.
- High-quality and durable metal body with front and back metal panels.

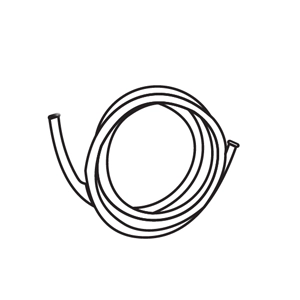

- Includes 1.5-meter power cable (2*2.5) with grounded plug.
- Features plastic carrying handle.
- Equipped with 30 ampere power switch.
- Equipped with 60 ampere diode bridge and 40 ampere relay.
- Features high-speed 4500 RPM fan.
- Equipped with temperature sensor and warning light (OC) and ready-to-work indicator.
- Full bridge switching circuit design for optimal device efficiency and performance.
- Equipped with high-quality transformer and PCB.
Features cutoff system
