FEMALE COUPLERS (SOCKETS) 20SMT SIZE 1/4 INCH
Loading...
FEMALE COUPLERS (SOCKETS) 20SMT SIZE 1/4 INCH
Product Code: 20SMT
Body material : Steel
Working pressure : 15 bar
Max pressure : 20 bar
Out body material : brass
Categories: Accessories, Couplers
Share this on:
Product Description
Product Specifications
Additional information
| Body material | Steel ck20 |
|---|---|
| Working pressure | 15 bar |
| Maximum pressure | 20 bar |
| Working temperature | 20 – 80°C |
Technical Specifications
- Available in internal thread, external thread, and hose-compatible models
- Produced in both standard male and female types
- High-quality internal components resistant to corrosion
- Uses 4 large ball bearings instead of 6 small ball bearings for better coupling grip
- Usable in temperatures from -20 to +80 degrees Celsius
- Pressure tolerance up to 20 bar (20 Bar)
- Equipped with high-quality one-way shut-off valve in female couplings
- Suitable for various high-pressure air equipment and hydraulic equipment
- Equipped with premium NBR material sealing washers
- Brass components in the ring and tail sections for higher resistance and prevention of long-term corrosion

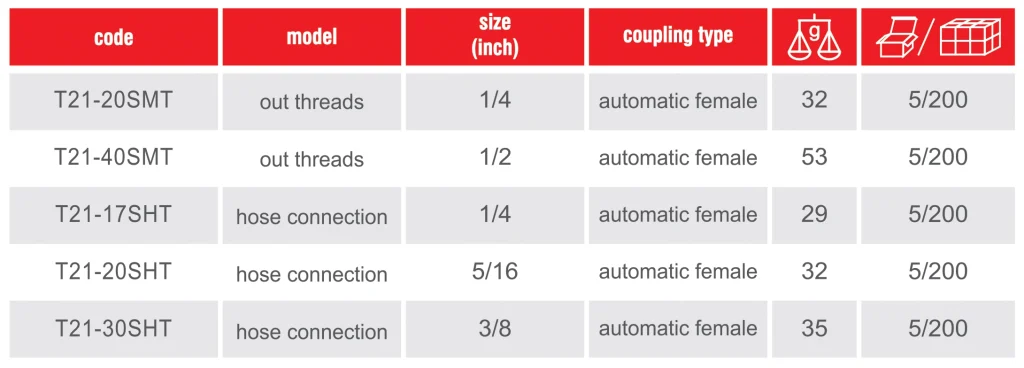

Product Size
