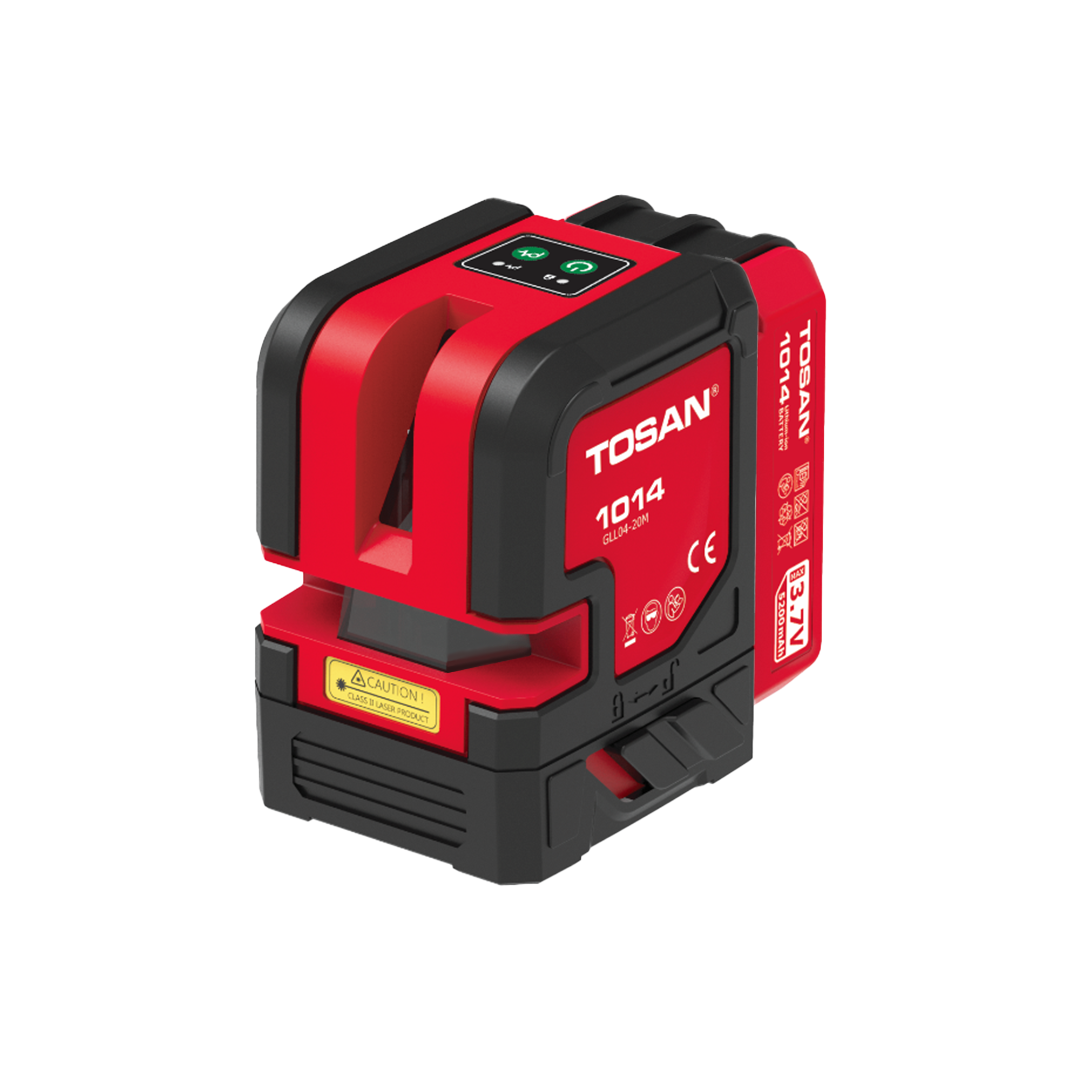

CROSS LINE GREEN LASER LEVEL MODEL 1014 WITH CANVAS BAG
Loading...
CROSS LINE GREEN LASER LEVEL MODEL 1014 WITH CANVAS BAG
Product Code: 1014
Laser light : Green
Laser range : 20 m
Self-level accuracy : 3+- deagre
Categories: Measuring Tools, Cross Line Laser Level
Share this on:
Product Accessories
Canvas bag
Bracket

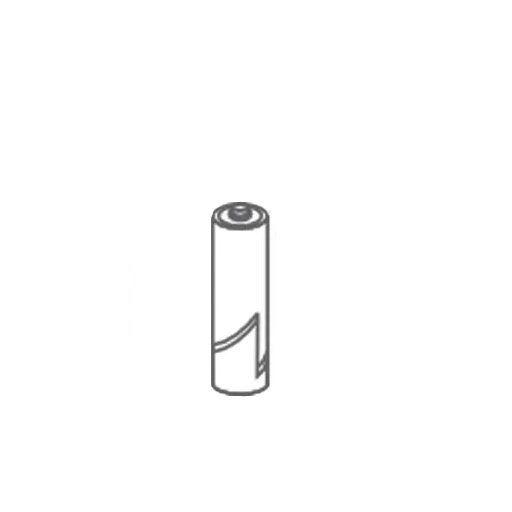

1 × Battery
Safety Glasses
Laser Receiver
Product Catalogs
Product Description
Product Specifications
Additional information
| Laser color | Green |
|---|---|
| Laser range | 20 M |
| Self-Leveling Range | ±3 degrees |
| Laser Wavelength | 520 nm |
| Leveling Accuracy at 10 m | ±3 millimeters |
| Laser Line Width at 10 m | 4 millimeters |
| Minimum Operating Temperature | -10 °C |
| Maximum Operating Temperature | +50 °C |
| Minimum Storage Temperature | -20 °C |
| Maximum Storage Temperature | +70 °C |
| Number of Batteries | 1 pc |
| Operating Time per Battery Pack | 8 hours |
| Number of Laser Diodes | 2 pcs |
| Battery Weight | 149 grams |
Product Videos
Product technical features
- Equipped with a genuine high-quality 520 nm laser diode for enhanced leveling precision.
- Magnetic mounting bracket allows easy and stable attachment to metal surfaces.
- Adjustable laser brightness optimizes battery consumption according to ambient lighting conditions.
- Operates on two planes — horizontal and vertical — for versatile leveling and alignment.
- Pulsed mode compatible with laser receivers (detectors) for extended range and improved outdoor visibility.
- Compatible with tripods featuring standard 1/4″ and 5/8″ threads.
- Automatic self-leveling system achieves accurate leveling in less than 3 seconds.
- Durable TPR-coated housing protects the tool from impacts and wear.
- Wide laser beam angle provides superior workspace coverage.
- Optimized power efficiency allows extended use for long working sessions.
- Soft-touch keypad offers smooth, user-friendly operation.
- Lockable pendulum mechanism prevents internal damage during transportation.
- Built-in battery level indicator for real-time power monitoring.
- Equipped with a long-lasting rechargeable battery for continuous operation.
- High-precision leveling ensured by components manufactured with advanced technology.
- Bright green laser beam for superior visibility in various lighting conditions.
- Pendulum self-leveling system with magnetic damping for increased stability and vibration control.
- Laser Class 2 for safety and compliance with international standards.
- Robust TPE + ABS body construction for enhanced durability.
- IP54-rated protection against dust and water splashes.
- Equipped with OSRAM pulse diode technology for improved laser performance and beam stability.
