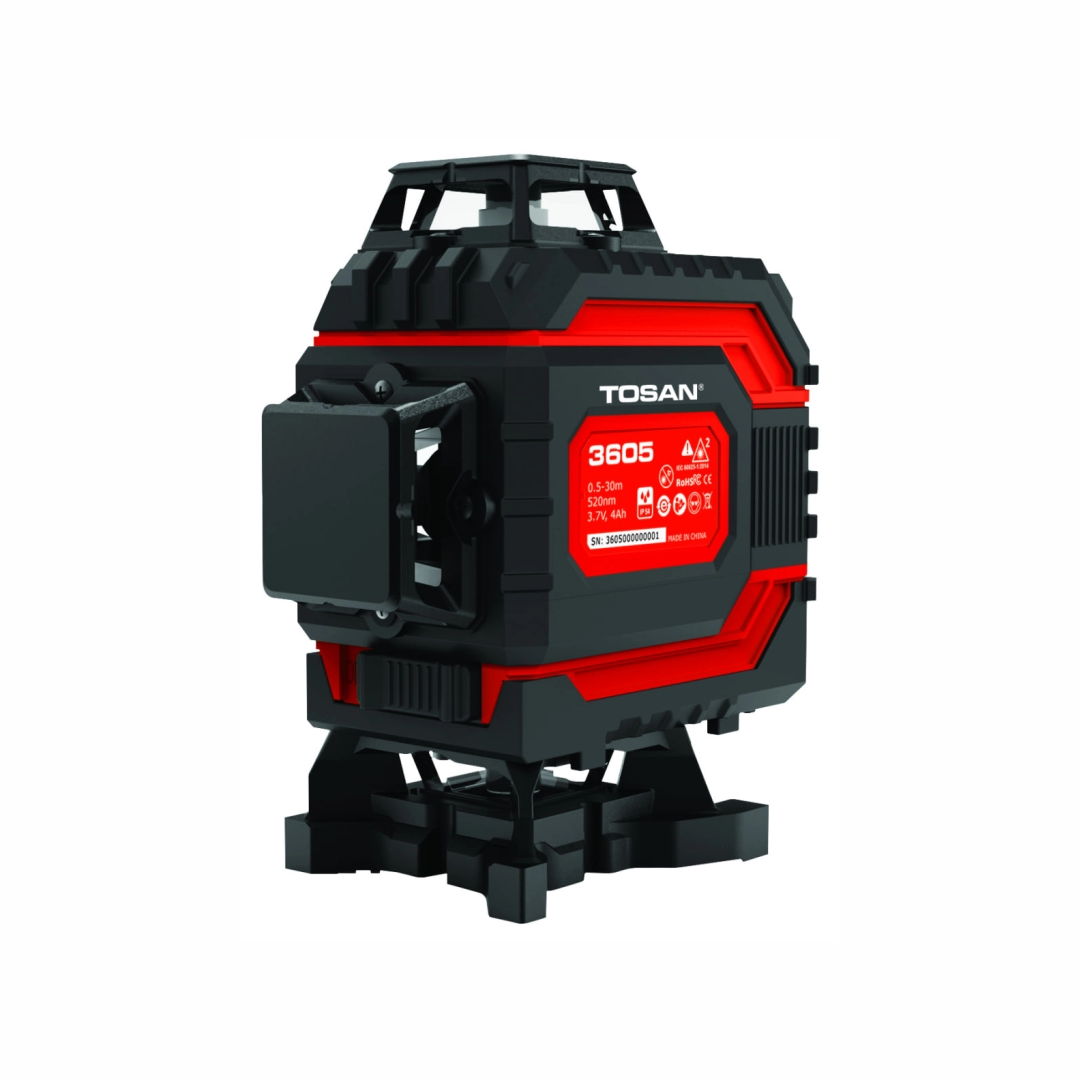

4D GREEN LASER LINES LEVELS MODEL M3605G
4D GREEN LASER LINES LEVELS MODEL M3605G
Laser light : Green
Laser range : 30 m
Self-level accuracy : 4+- deagre
Laser accuracy : -/+1.5 mm/m



Product Accessories
Canvas bag
Bracket
3D glasses
Product Catalogs
Product Description
Product Specifications
Additional information
| Laser color | Green |
|---|---|
| Laser range | 30 m |
| Self-level system | auto self-level ability : 3-5 sec |
| Self-level accuracy | 4+- deagre |
| Laser type / wave | diode : 520 Nm |
| Laser class | 2 |
| Laser accuracy | -/+1.5mm/m |
| Net weight (without battery) | 0.7 kg |
Product Videos
Product technical features
-
Equipped with an automatic self-leveling system that levels within 3–5 seconds.
-
Japanese bearings integrated into the self-leveling system for superior accuracy and durability.
-
Fitted with a German-made OSRAM 520 nm green laser diode for extended lifespan and enhanced beam quality.
-
Durable TPR-coated housing provides effective protection against impacts and surface damage.
-
Capable of operating across three 360° planes for comprehensive coverage.
-
Adjustable laser brightness allows optimal battery usage based on ambient light conditions.
-
Built-in battery status indicator for easy power monitoring.
-
High-precision leveling achieved through components engineered with advanced technology.
-
Equipped with a long-life rechargeable battery for extended working hours.
-
Out-of-level warning system with flashing laser and audible Beep alert.
-
Magnetic mounting bracket enables quick and stable attachment to metal surfaces.
-
Wall mounting bracket can be attached from both top and bottom for versatile positioning.
-
Compatible with tripods featuring standard 1/4″ and 5/8″ threads.
-
Operates on three 360° axes with a total of 16 laser lines for full spatial alignment.
-
Fourth-dimensional horizontal X-axis projection enables leveling of surfaces close to the ground.
-
Remote control functionality for convenient and efficient operation.
-
Suitable for both indoor and outdoor use with a working range of up to 30 meters.
-
Supplied with high-quality and practical accessories for multiple leveling applications.
-
Dual 4.0Ah lithium batteries included, with a 5V fast charger capable of full recharge within 2 hours.
-
Lockable pendulum mechanism protects the leveling system during transportation.
-
Unique soft-touch keypad for comfortable and intuitive operation.
-
Supplied with a durable PVC carrying case for easy transport and tool protection.
